Quartz Combustion Tube: Comparing a Replacement with the Existing Part

Use that reference to identify the form, then compare the actual part and mating components. A familiar part description or reference number does not establish original-manufacturer status, interchangeability or operating life.

In this guide: Configuration · Design comparison · Compare the two ends separately · Locate the installed tube from a clear reference · Keep the process requirement separate from the shape · What to retain in a custom replacement brief · Enquiry

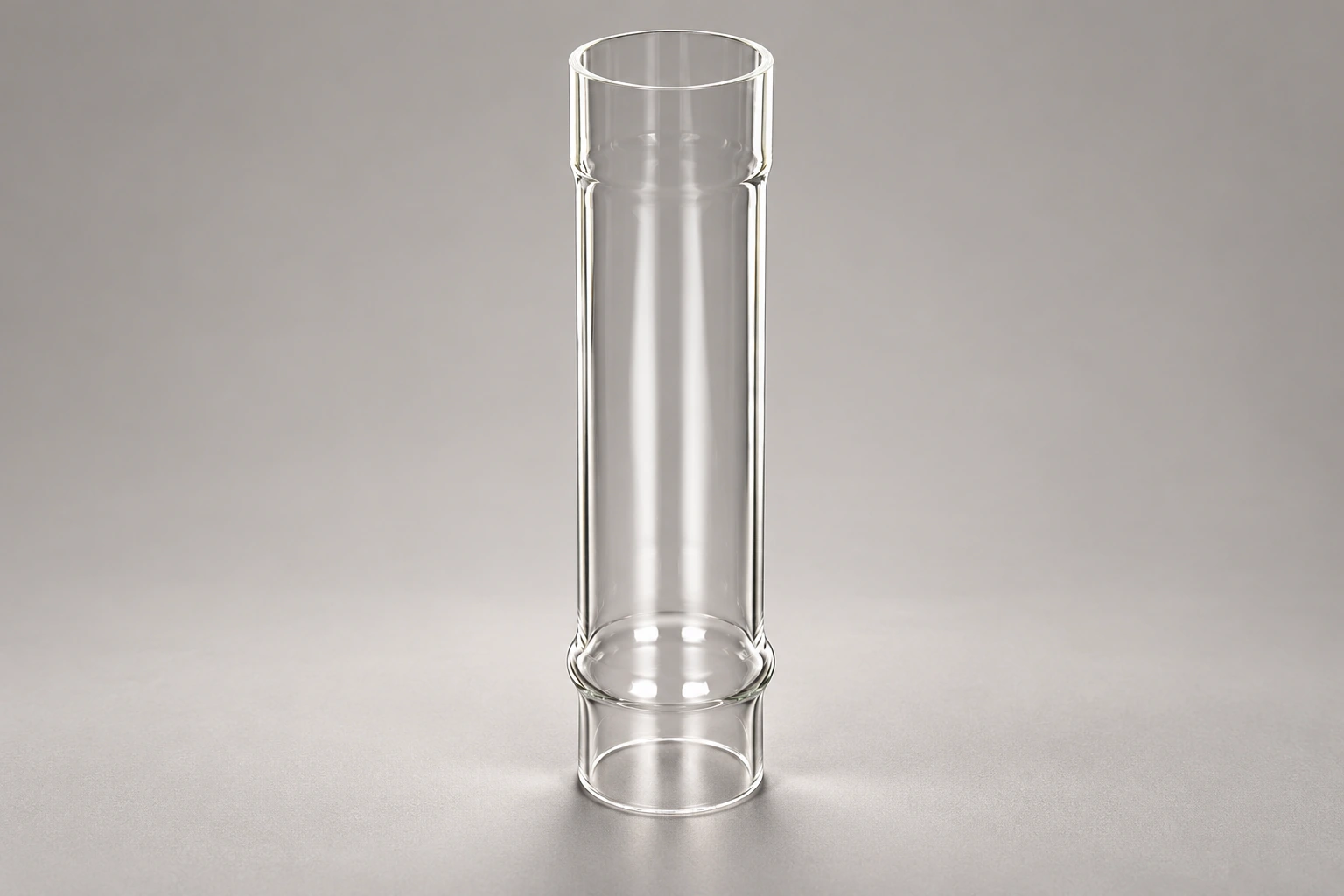

The configuration discussed here

What changes from the simpler form?

An open process tube connects two end interfaces through a body rather than holding sample behind a single mouth. A replacement request must preserve the relevant end fits and support positions, not merely the material name.

Compare the two ends separately

A tube can look broadly correct while one end contacts a seal or seat differently. Identify each end, its outside and inside boundaries and the region that meets the mating part. Keep insertion length separate from the total length.

Provide the removed part or a dimensioned drawing if available. A photograph helps identify the profile, but it cannot define an unseen seat, critical bore or required tolerance.

Locate the installed tube from a clear reference

Show which surface stops or locates the tube and how much of it remains inside the assembly. Include any surrounding supports and the clearance needed to insert and remove it. This makes the fit request more useful than a single overall-length measurement.

If an existing seal, holder or accessory must be reused, identify it as a mating component. Its apparent fit on one portion of the tube should not be treated as proof that the entire replacement assembly is suitable.

Keep the process requirement separate from the shape

State the actual analytical process and relevant exposure conditions. A quartz material listing and a replacement reference do not supply a temperature limit, chemical rating or service-life result for your use.

If the method requires a blank, contamination assessment or other operating verification, define the procedure and acceptance requirement in advance. Such verification is not reported for this design example.

What to retain in a custom replacement brief

A possible request is to retain both mating-end interfaces while reviewing a body dimension that conflicts with an existing support. Mark the fixed ends and the proposed change on the same drawing. MQ can then discuss whether the requested geometry is feasible.

The final drawing should identify the ordered configuration, supplied parts and checks. Keep reference numbers and compatibility evidence in the order record rather than relying on an approximate visual match.

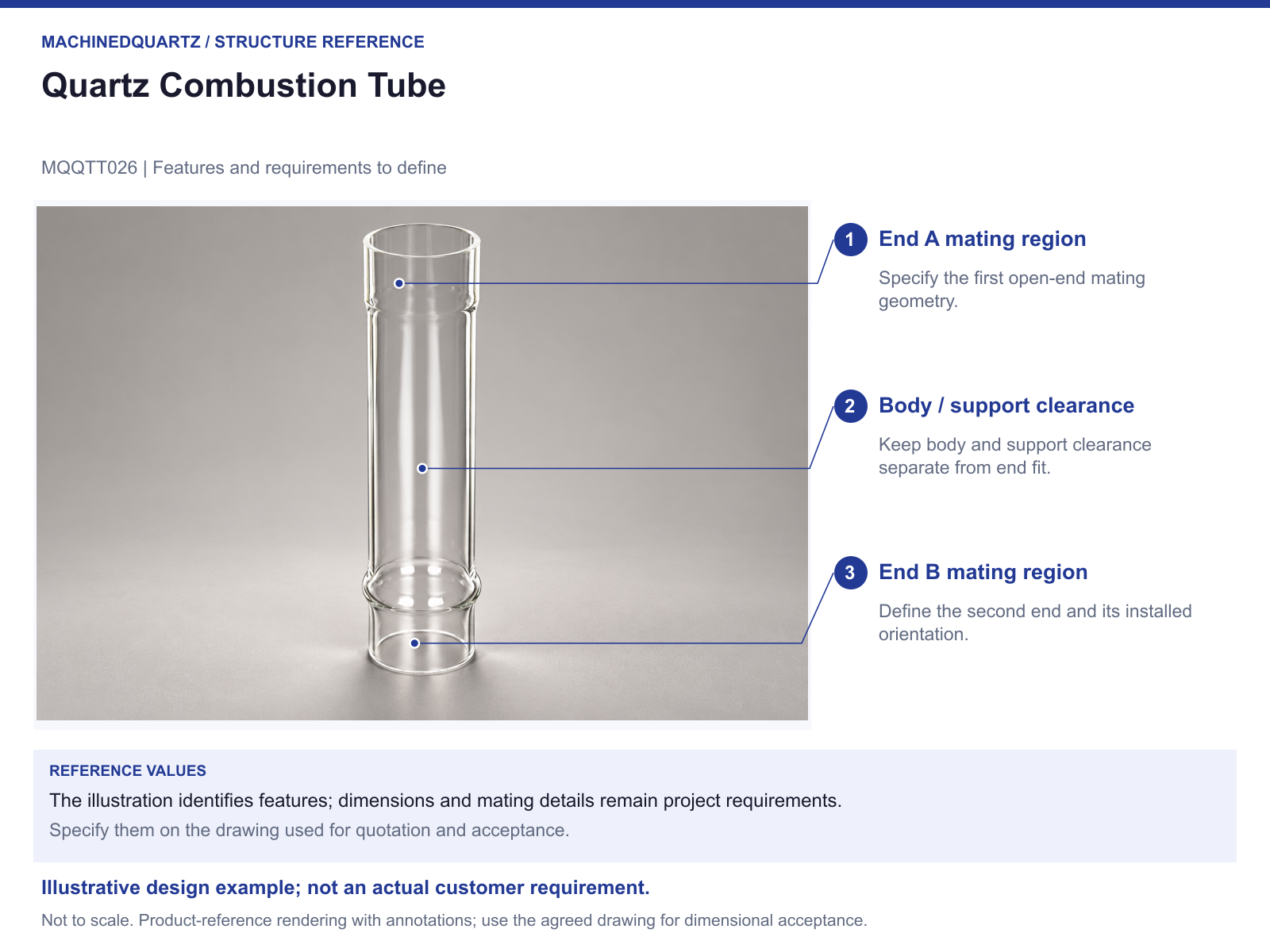

Structure reference and specification points

Download the structure reference (PDF)

Does the replacement reference mean it is an original instrument-manufacturer part?

No. This guide makes no original-manufacturer or verified-compatibility claim. The actual interfaces, operating requirements and any required validation must be reviewed for the intended assembly.
