Tall Quartz Sample Cell: Planning the Working Level and Support

Here the design discussion starts with the size of the container and the working liquid level. The holder has to support a much taller sample body while leaving the required windows accessible.

In this guide: Configuration · Design comparison · Choose the working level from the optical task · Give the tall body a defined support · Make retrieval part of the layout · Specify the windows that the method uses · Enquiry

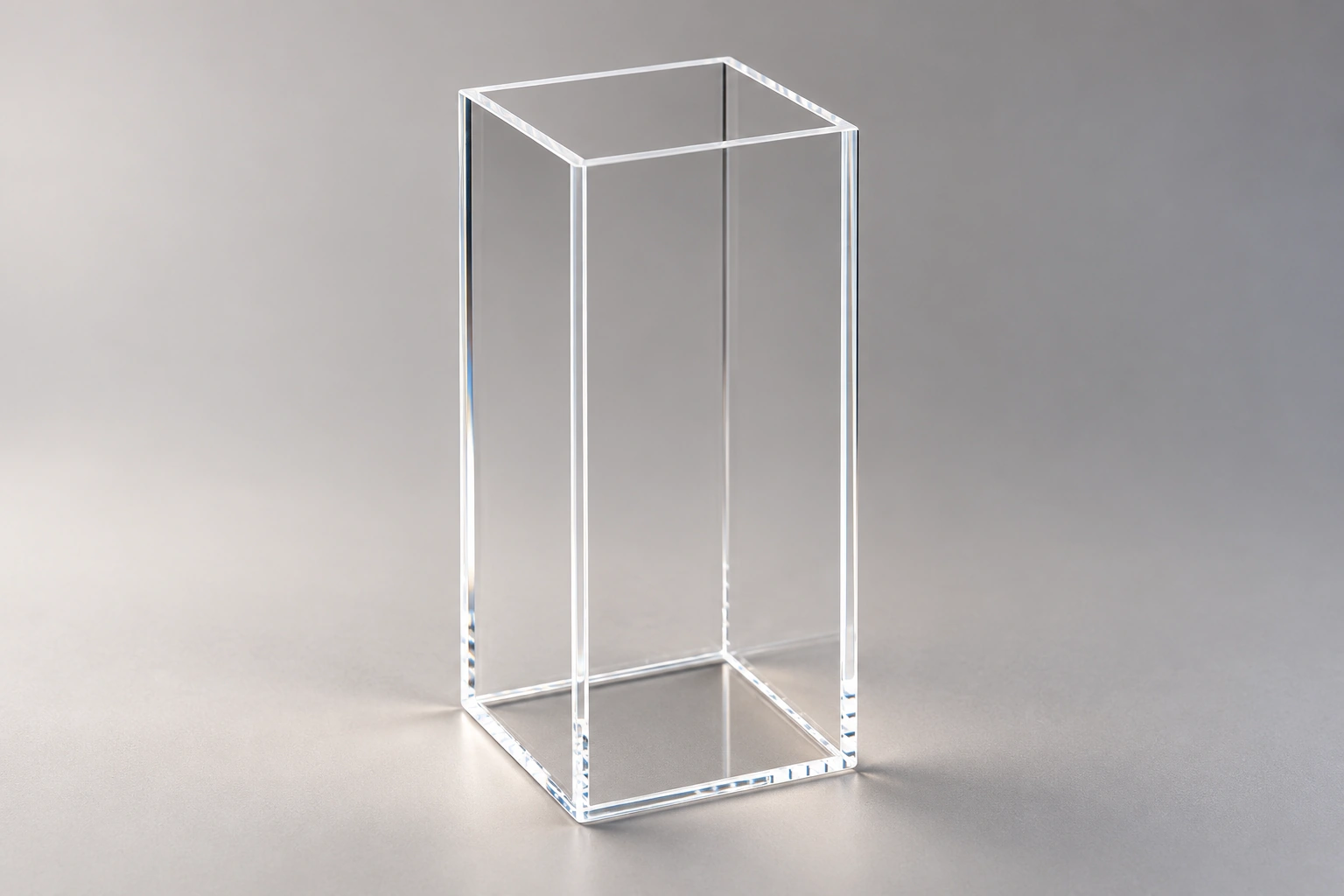

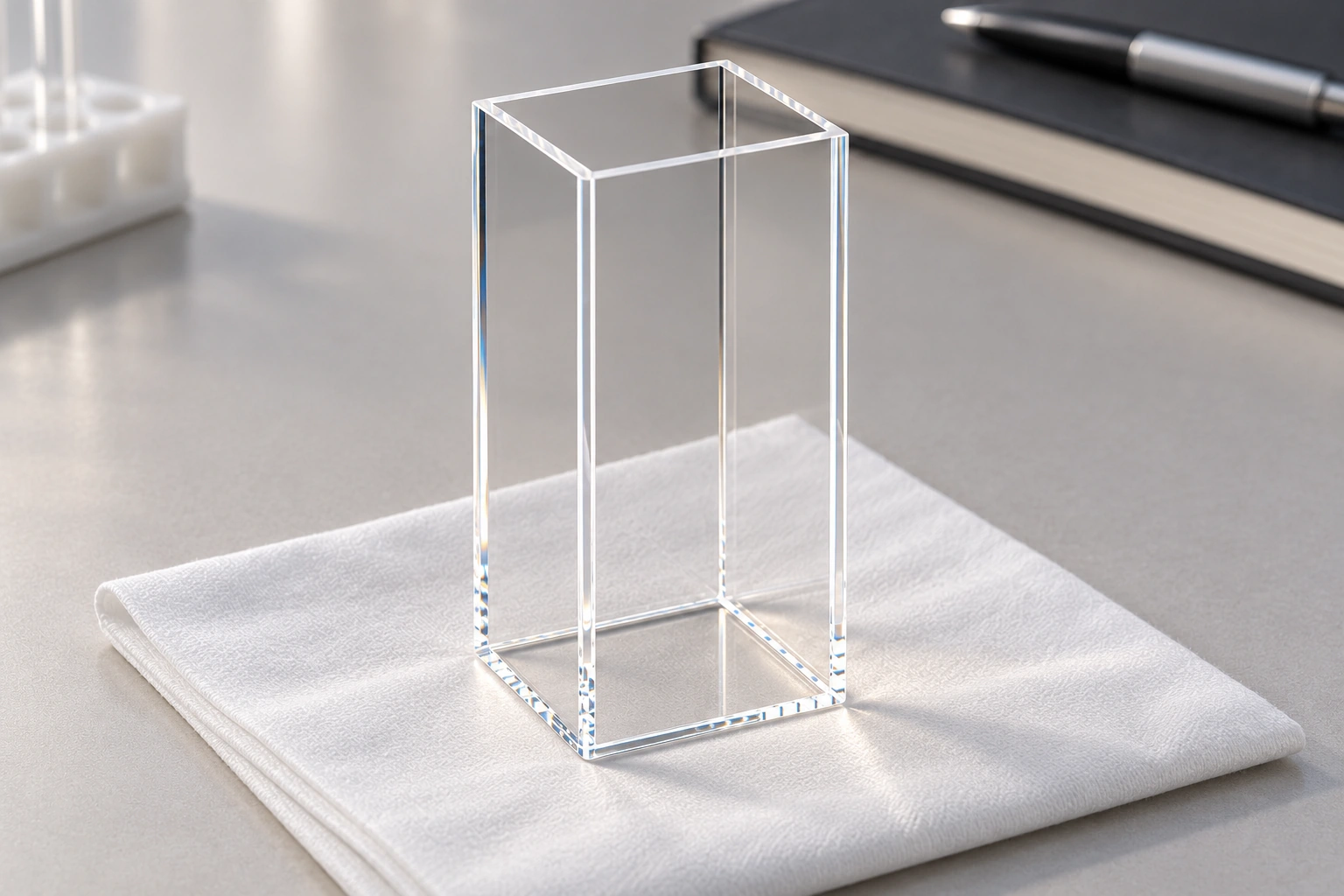

The configuration discussed here

What changes from the simpler form?

A taller large-capacity body retains clear sample-facing surfaces but changes working-level, support and retrieval requirements. The useful design comparison is with the installed holder and the required liquid coverage, not capacity alone.

Choose the working level from the optical task

Mark the region that must be covered by the sample and give the intended liquid level. The 235 mL designation is not a requirement to fill to the top, nor a guarantee of a usable fill under every arrangement.

If a probe or transfer tool is present, include its displaced space and access needs in the proposed setup. Do not convert the outside box dimensions into a calibrated volume.

Give the tall body a defined support

Show the base support, lateral contacts and insertion direction. Identify the surfaces that must remain clear for the required observation directions, particularly if the bottom is part of the optical arrangement.

The reference does not establish an allowable clamping force or a loaded carrying method. Describe how the actual fixture will locate the cell so the support requirement can be reviewed.

Make retrieval part of the layout

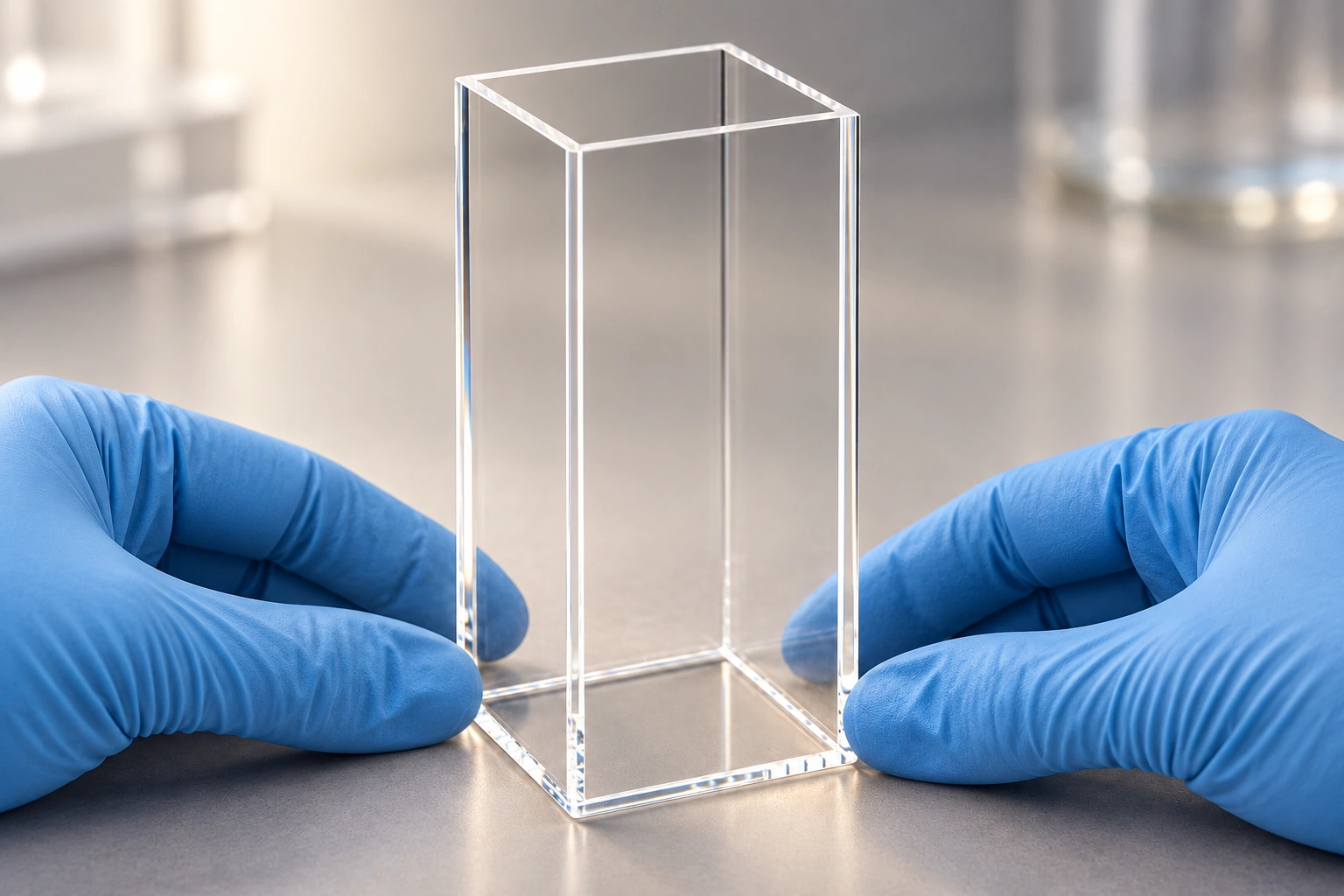

A tall cell may clear the holder at rest but be difficult to remove beneath an enclosure. Include the complete lift-out route and the region available for handling the outside body.

For example, a customer may wish to preserve the sample-space class while changing the outside height or support arrangement. That proposal needs the working level, optical region and handling route on the same drawing.

Specify the windows that the method uses

Five clear faces describe the reference configuration; they do not report identical optical quality on every face. Name the active windows and any required flatness, surface or transmission criteria.

MQ can review those requirements with the outside dimensions and proposed support check. A large clear container should be specified as a part in a setup, rather than assumed to fit an existing 50 mm holder.

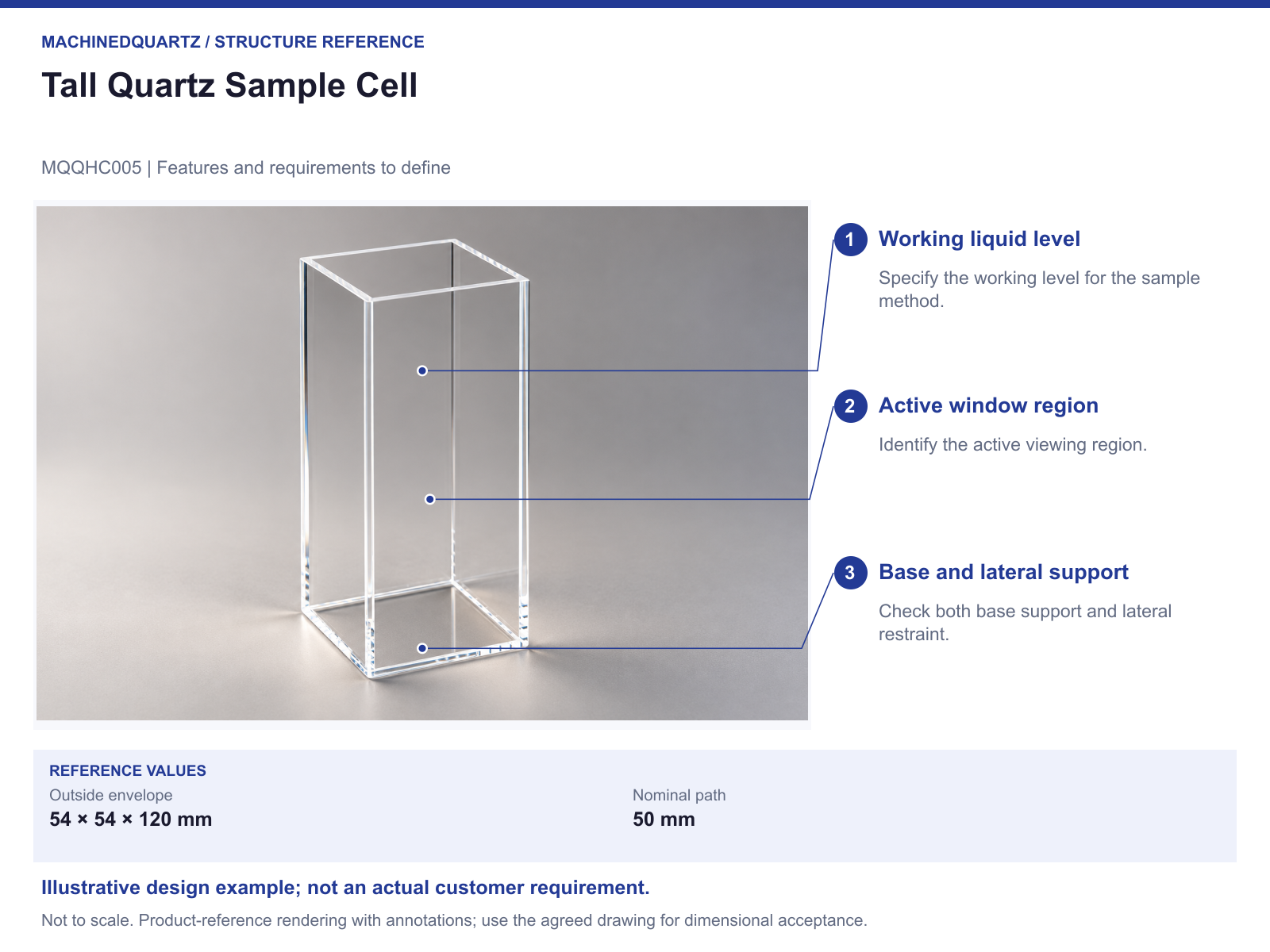

Structure reference and specification points

Download the structure reference (PDF)

Is the whole 235 mL capacity required for a measurement?

The operating amount depends on the optical region, sample level and inserted components. Specify the working fill separately from the nominal container capacity.
