Temperature-Control Polarimeter Tube: Planning the Circulation Connections

The sample path, circulation circuit and temperature observation need to be specified separately. A temperature-control designation does not establish a verified sample temperature, uniformity or control accuracy.

In this guide: Configuration · Design comparison · Draw two systems: sample and circulation · State the temperature at the sample · Keep the end-window interfaces in the fit review · A custom connection position needs the full envelope · Enquiry

The configuration discussed here

What changes from the simpler form?

The circulation connections add a second system around the sample-path assembly. Compared with a plain polarimeter tube, line routing and sample-temperature observation become additional requirements rather than automatic performance benefits.

Draw two systems: sample and circulation

The sample belongs to the measurement tube, while the surrounding circulation arrangement has its own connections and external equipment. Identify these routes separately and label the actual connection dimensions. Do not assign inlet and outlet roles from the tube appearance alone.

Show the lines in their connected positions, including bend and attachment space. The optical tube can fit the instrument while the circulation connections still conflict with its cover or support.

State the temperature at the sample

A specified bath or circulating-medium setting is not automatically the sample temperature. Tell MQ where temperature needs to be observed and what stability or uniformity the method requires. The available reference does not report those results.

For polarimetry, path and concentration belong to the interpretation of optical rotation; measurement conditions should be recorded too. The IUPAC definition gives the general relationship rather than a qualification of this assembly.

IUPAC Gold Book: optical rotatory power

Keep the end-window interfaces in the fit review

Identify the instrument seating, end windows and closure parts as well as the circulation necks. Their dimensions and materials need to suit the actual method. A nominal 200 mm path does not establish end-assembly interchangeability.

If an existing tube is being replaced, provide its drawing or mating references and the current circulation arrangement. Mark the components to retain so a connection change does not leave the window or support requirement undefined.

A custom connection position needs the full envelope

A possible request is to retain the measurement-path class while moving a circulation connection to clear a cover. Give the required connection endpoints and external line space, with the optical seating references shown on the same drawing.

MQ can review the proposed assembly and any dimensional, circulation or temperature-verification request. The checks and documentation need agreed conditions before supply; none is implied by the style name.

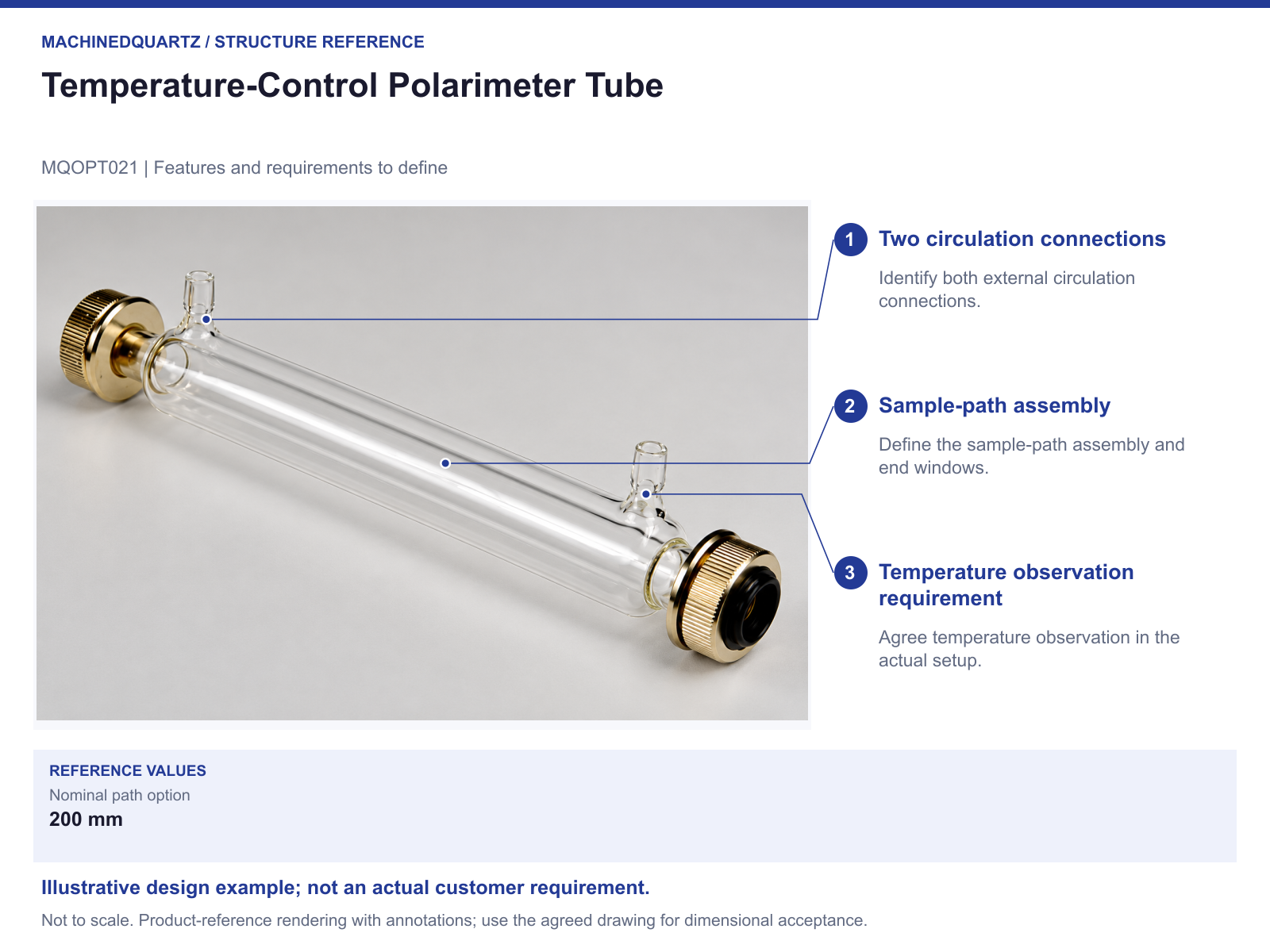

Structure reference and specification points

Download the structure reference (PDF)

Does the temperature-control label specify an accuracy?

No measured control accuracy or sample-temperature uniformity is established here. Provide the required sample-temperature conditions, observation point and acceptance method for the complete setup.
