(MQQFC021) Quartz Rectangular Sample Cell, 20/10 mm Dual Path, 10 mL, Open at Both Ends

Weight150 g
SKU: MQQFC021

$480.00

In Stock

MQQFC021 is a JGS1 quartz rectangular sample cell with 20 mm and 10 mm optical paths in one open-at-both-ends body. Its Four-Way Light layout and 10 mL nominal capacity suit methods that need two defined transmission directions in the same chamber. Sold as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC021 is a JGS1 quartz rectangular sample cell for UV/Vis work from 200 to 2500 nm when your setup needs two defined optical directions in one body. It combines a 20 mm primary path, a 10 mm secondary path and a 10 mL nominal chamber, so you can work with one sample region while selecting the measurement direction that fits your method.

The Four-Way Light layout adds optical access on two axis pairs, and the body remains open at both ends for integration into your own holder or end-sealing arrangement. This is useful when the optical geometry and the mechanical fixture need to be planned together.

Path Length
20 mm / 10 mm (dual path)
Sample Volume (Nominal)
10 mL
Opening Configuration
Open at Both Ends

Selection Specifications

Product KindSpecialized Cell
Cell TypeRectangular Sample Cell
Measurement ModeTransmission Spectroscopy
Path Length20 mm / 10 mm (dual path)
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)10 mL
External Dimensions26 × 16 × 50 mm
Uncapped Cell Dimensions26 × 16 × 50 mm
External Dimensions ScopeUncapped Cell
Body Height50 mm
Base Dimensions26 × 16 mm
Internal Dimensions20 × 10 × 50 mm
MaterialQuartz
Material GradeJGS1
Package Contents1 × Quartz sample cell
Fabrication MethodMolded 83
Opening ConfigurationOpen at Both Ends
Pack Quantity1 Piece

Choose this option

Choose MQQFC021 when you want both 20 mm and 10 mm transmission paths available in the same rectangular quartz cell body. It is especially suitable for fixture-based setups where you need a larger chamber and side-to-side optical access, but prefer to define the end support, filling and sealing method yourself rather than use a preassembled flow-cell connection.

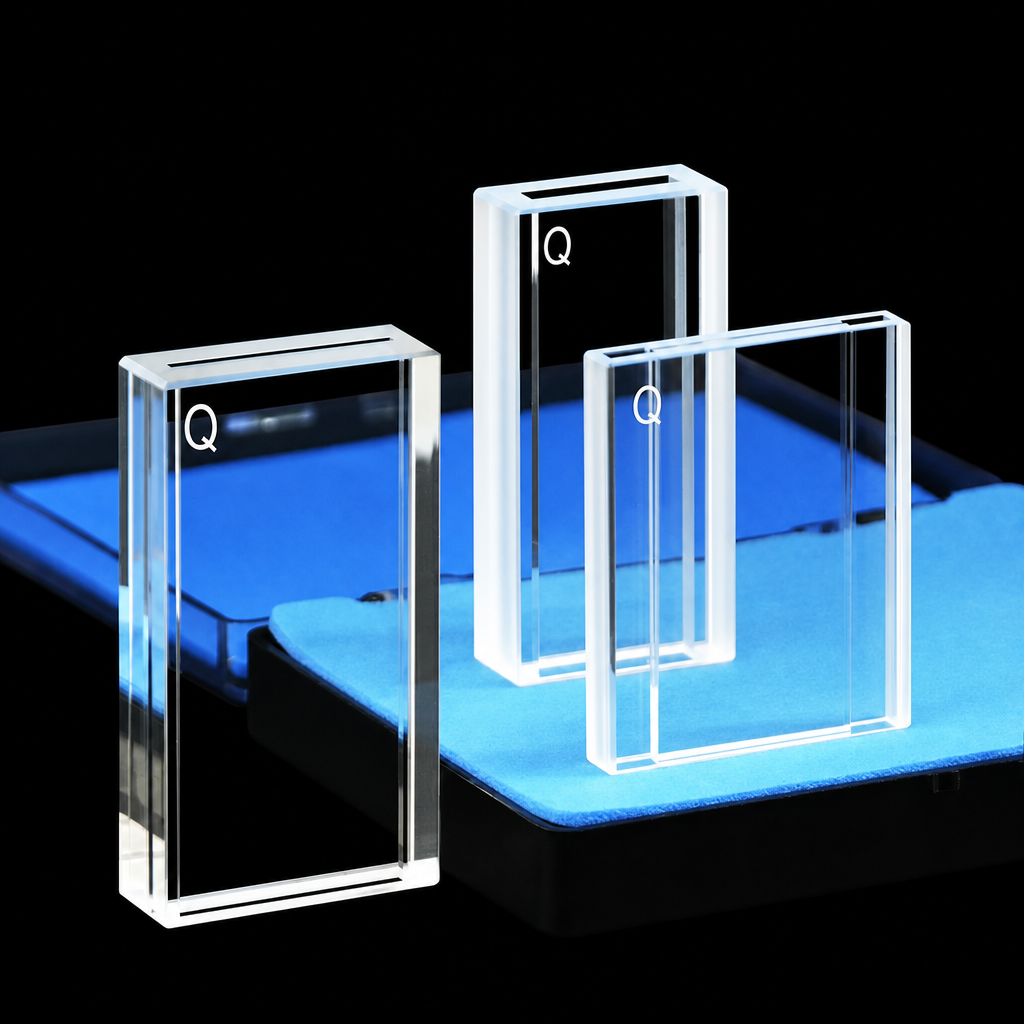

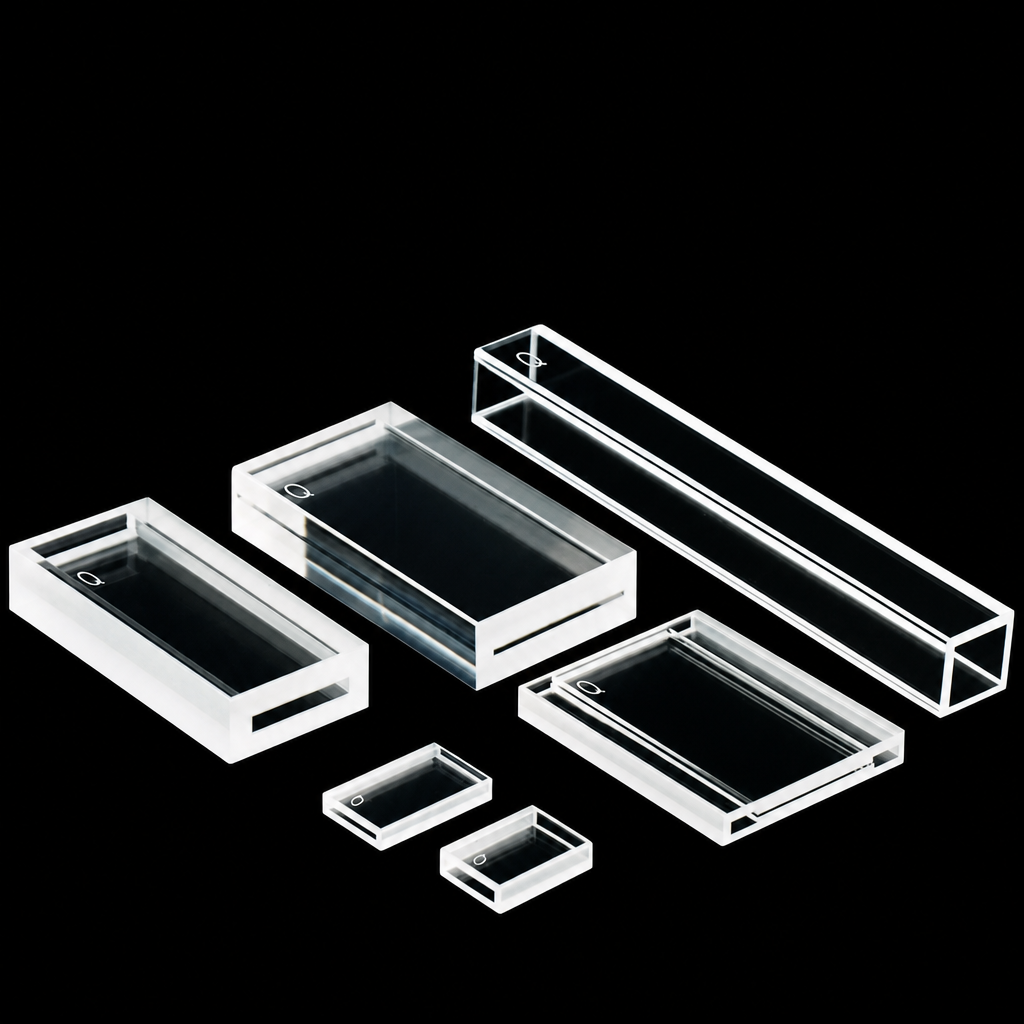

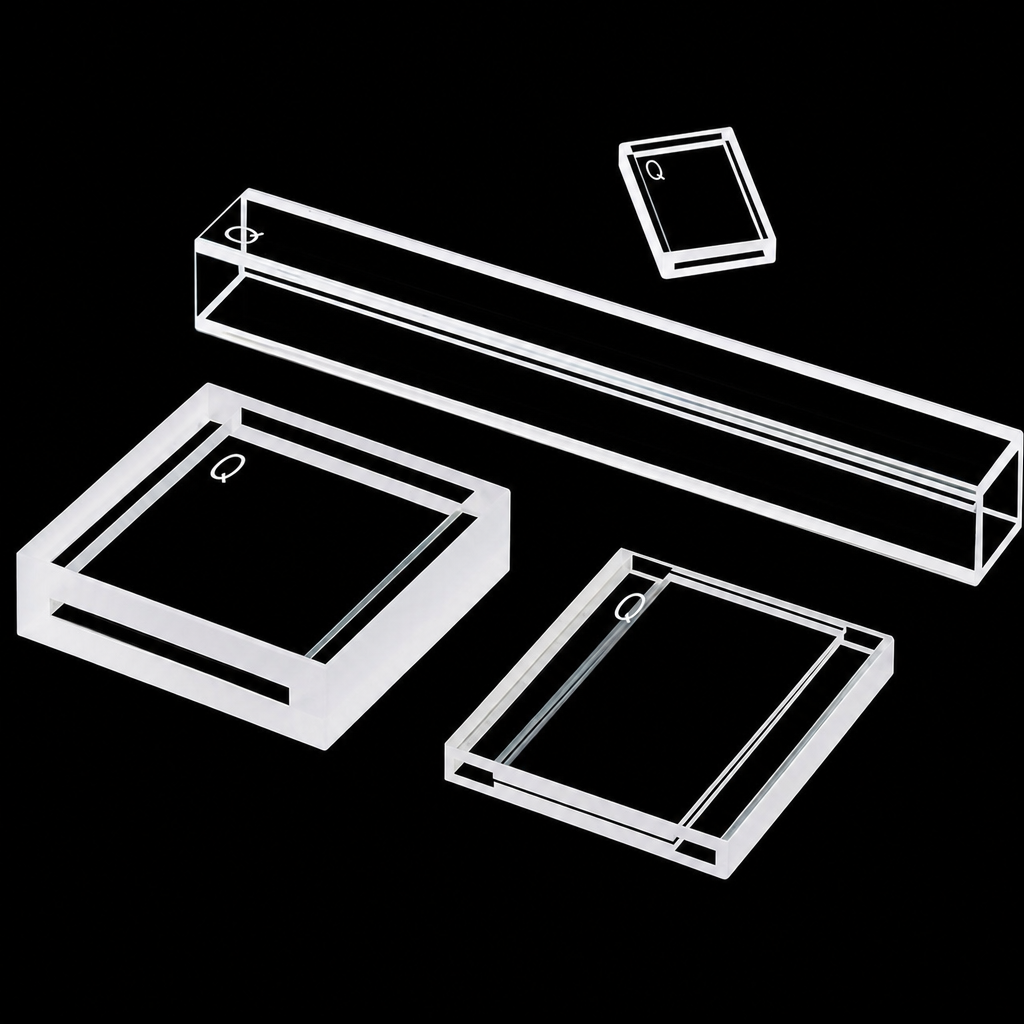

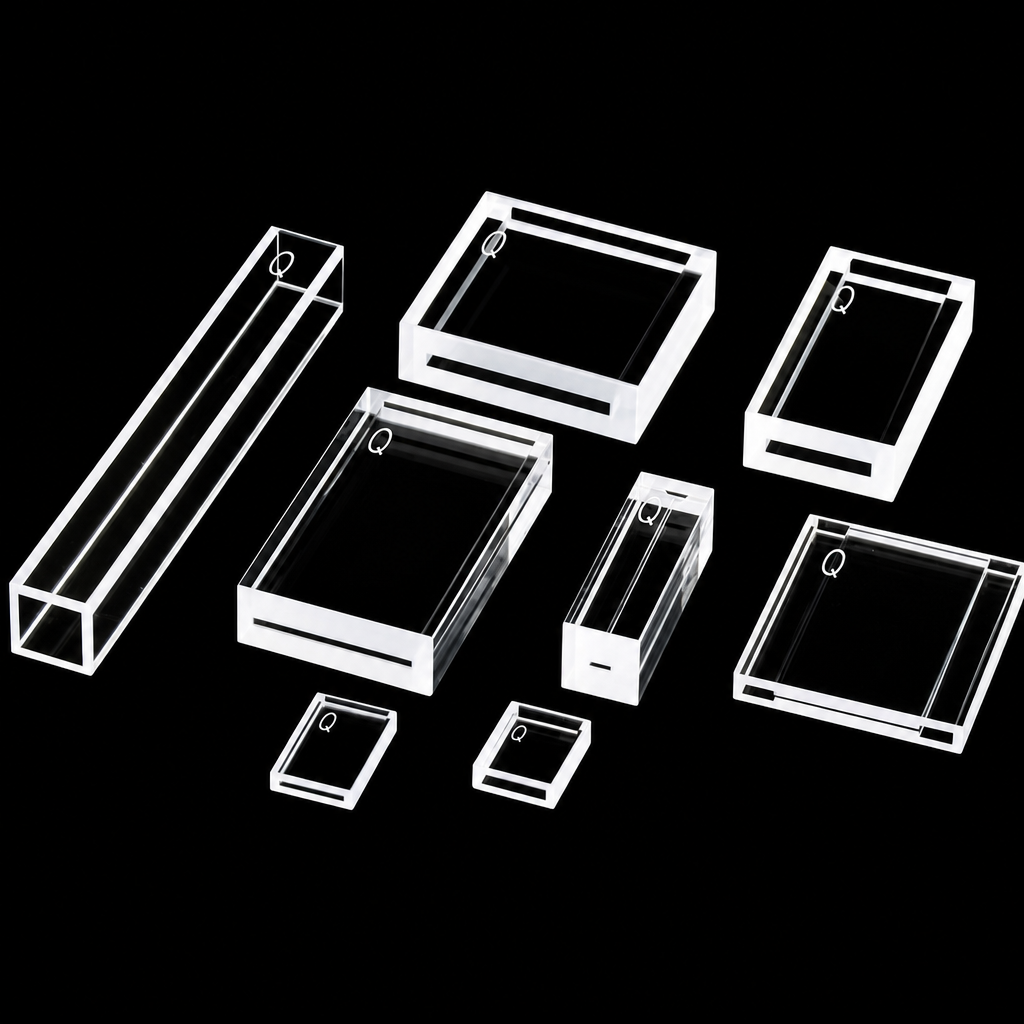

View the English selection reference. Also available in the product gallery. Group photographs illustrate other options in the series.

What makes this option different

  • 20 mm and 10 mm optical paths in one cell: useful when one method or workflow needs two defined transmission directions without changing the sample chamber.
  • Four-Way Light layout: provides optical access through two opposing face pairs, which matters when the measurement orientation is part of the method design.
  • Open at both ends: lets you build the filling, support and sealing arrangement around the cell body.
  • 10 mL nominal capacity: suited to applications that need a larger chamber than compact micro cells.
  • Molded 83 fabrication: this construction is commonly selected for organic-solvent methods, while full suitability still depends on the complete wetted assembly you use with the open ends.
  • ±0.02 mm path tolerance: specified for the listed path lengths as a grade tolerance target.

Structure and dimensions

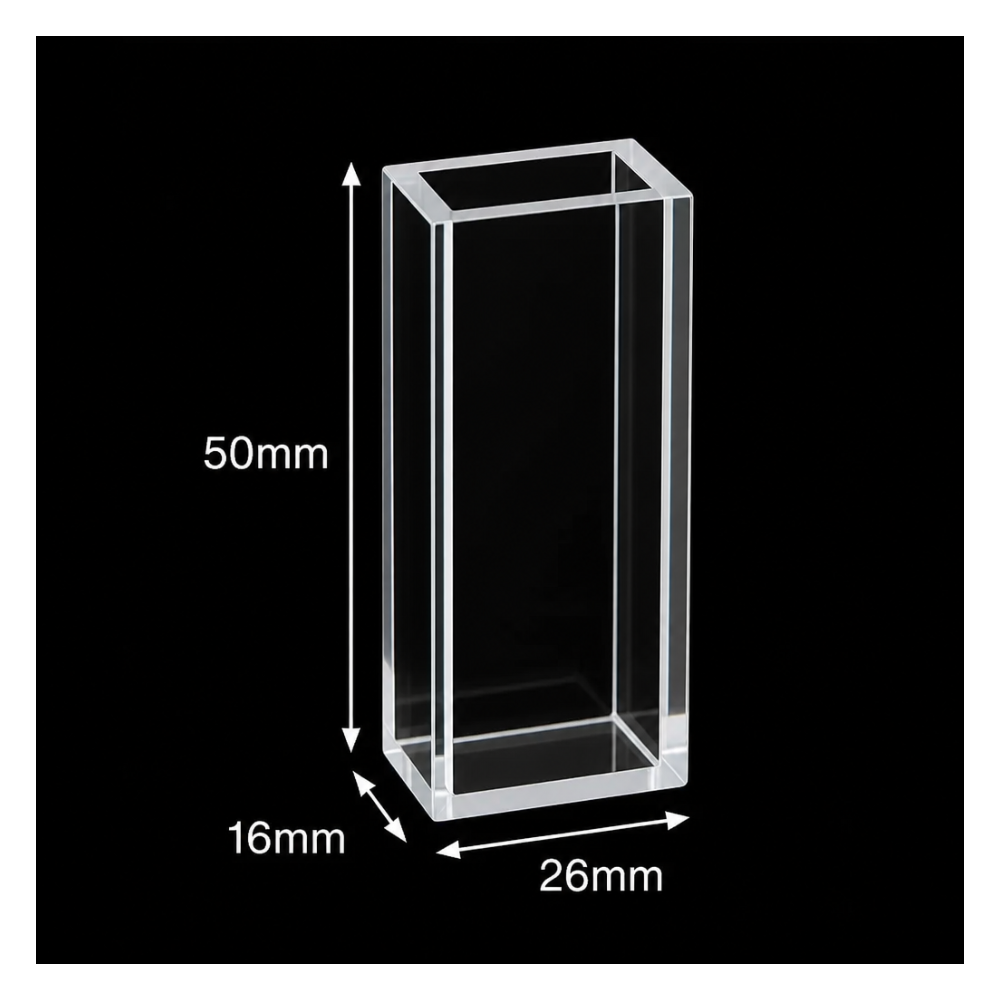

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Align the cell to the path length required by your procedure and keep that orientation consistent for blank and sample measurements. If you use both optical directions in the same workflow, mark the orientation clearly in the holder or SOP so the 20 mm and 10 mm paths are not mixed during handling.

The stated 10 mL is the nominal chamber capacity, not a minimum working volume. Because the body is open at both ends, the practical filled assembly will depend on the seals or other end parts used in your own setup.

First-use check

  1. Inspect the optical faces, end edges and chamber opening before installation.
  2. Test the cell in the intended holder and confirm which orientation corresponds to each path length.
  3. Run a blank after filling and remove bubbles or exterior droplets before recording measurements.

Fit and optical alignment

Check holder clearance against the 26 × 16 × 50 mm external dimensions of the uncapped cell body. The internal 20 × 10 × 50 mm dimensions describe the sample region and should not be used as outside fit dimensions.

Z Height is not listed for this SKU. If your instrument or fixture depends on a fixed beam-center height, confirm the alignment in your actual holder before ordering.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses Molded 83 fabrication, based here on the supplier’s optical-contact construction. It is commonly chosen for organic-solvent methods, but compatibility still depends on the full wetted setup, including any seals, fittings or other parts added to the open-ended body.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces gently with non-abrasive lab tissue.

Included with this option

1 quartz sample cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, outer size, opening arrangement, window layout or tolerance target, please send your drawing or holder details through the contact page. Custom JGS1 quartz projects are reviewed separately from the listed SKU, with feasibility, quantity, price and production time confirmed case by case.
