(MQQFL012) Quartz Screw-Top Cuvette, 0.1 mm path, Very Short Path with Large Screw Opening

Weight50 g
SKU: MQQFL012

$1,128.00

In Stock

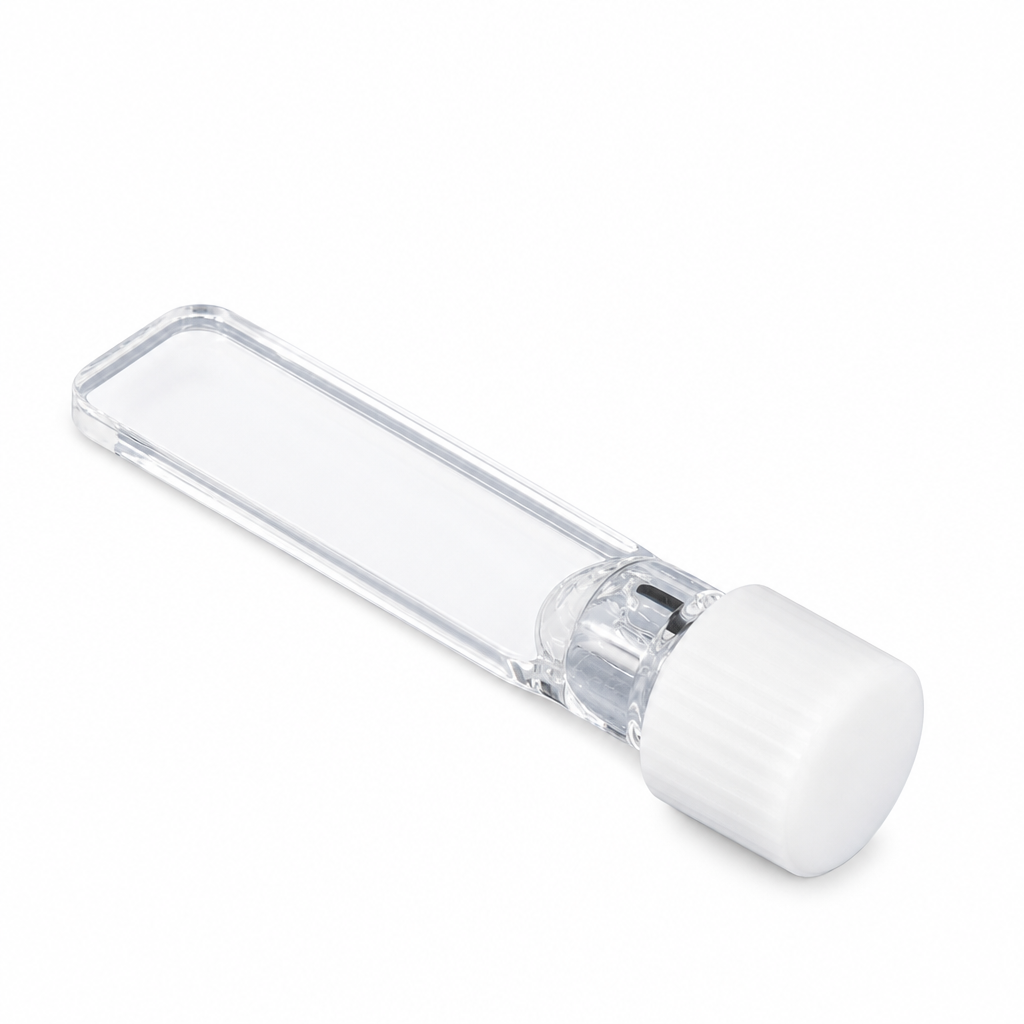

JGS1 quartz screw-top cuvette with a 0.1 mm optical path, Four-Way Light geometry and 35 µL nominal capacity for UV/Vis work. The single M10 threaded neck gives top filling access in a very short-path upright cell. The listed price is for 1 piece with an accompanying closure. Molded 83.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

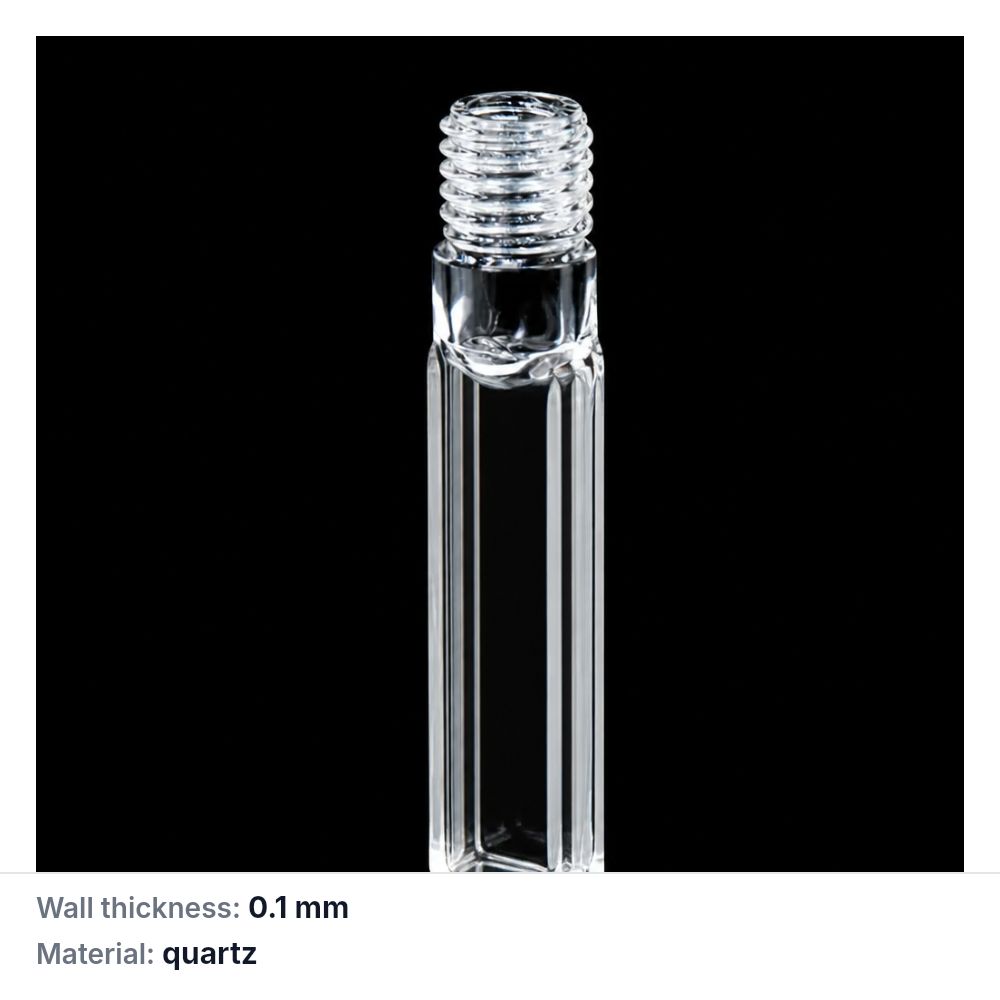

MQQFL012 is a JGS1 quartz screw-top cuvette for UV/Vis measurements with a 0.1 mm optical path, Four-Way Light optical access and 35 µL nominal capacity. It combines a very short path with a single M10 threaded neck, giving direct top access in a compact upright cell format. This sales option is supplied as 1 piece with an accompanying closure.

Path Length
0.1 mm
Sample Volume (Nominal)
35 µL
Opening Configuration
Single Threaded Neck

Selection Specifications

Product KindCuvette
Cell TypeScrew-Top Cuvette
Measurement ModeUV/Vis Spectroscopy
Path Length0.1 mm
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)35 µL
External Dimensions12.5 × 2.6 × 35 mm
Body Height35 mm
Overall Height with Closure58 mm
Base Dimensions12.5 × 2.6 mm
MaterialQuartz
Material GradeJGS1
Closure TypeScrew Cap
Port ThreadM10
Fabrication MethodMolded 83
Opening ConfigurationSingle Threaded Neck
Closure ThreadM10
Pack Quantity1 Piece
Package Contents1 × Quartz Screw-Top Cuvette; Accompanying closure

Choose this option

Choose MQQFL012 when your method requires a very short 0.1 mm path and you prefer a capped sample chamber instead of an open-top cell. The Four-Way Light layout gives optical access on multiple faces, while the threaded neck provides a defined opening for filling and closing. It is a useful choice when path length, small nominal capacity and top-access handling all matter in the same cell.

What makes this option different

  • 0.1 mm optical path for very short-path UV/Vis measurements.
  • 35 µL nominal capacity in a compact upright sample chamber.
  • Four-Way Light geometry for optical access on four sides of the quartz body.
  • Single M10 threaded neck with accompanying closure for top filling and capped handling.

Using this cell

Fill the cell through the threaded neck and make sure the sample fully covers the illuminated region before measurement. With a path this short, bubbles, droplets and residue can affect the reading more easily than in a longer-path format, so inspect the sample zone carefully after filling.

Keep the same orientation for blank and sample runs, especially if your setup depends on a fixed optical direction. If you work close to the nominal 35 µL capacity, check the practical fill level in your own holder because minimum working volume is not established here.

First-use check

  1. Inspect the optical faces, sample chamber and neck area for contamination or handling marks.
  2. Test fit the cell in your holder and verify beam position with a suitable blank.
  3. After filling, remove bubbles and exterior droplets before the first measurement.

Fit and optical alignment

View the English selection reference.

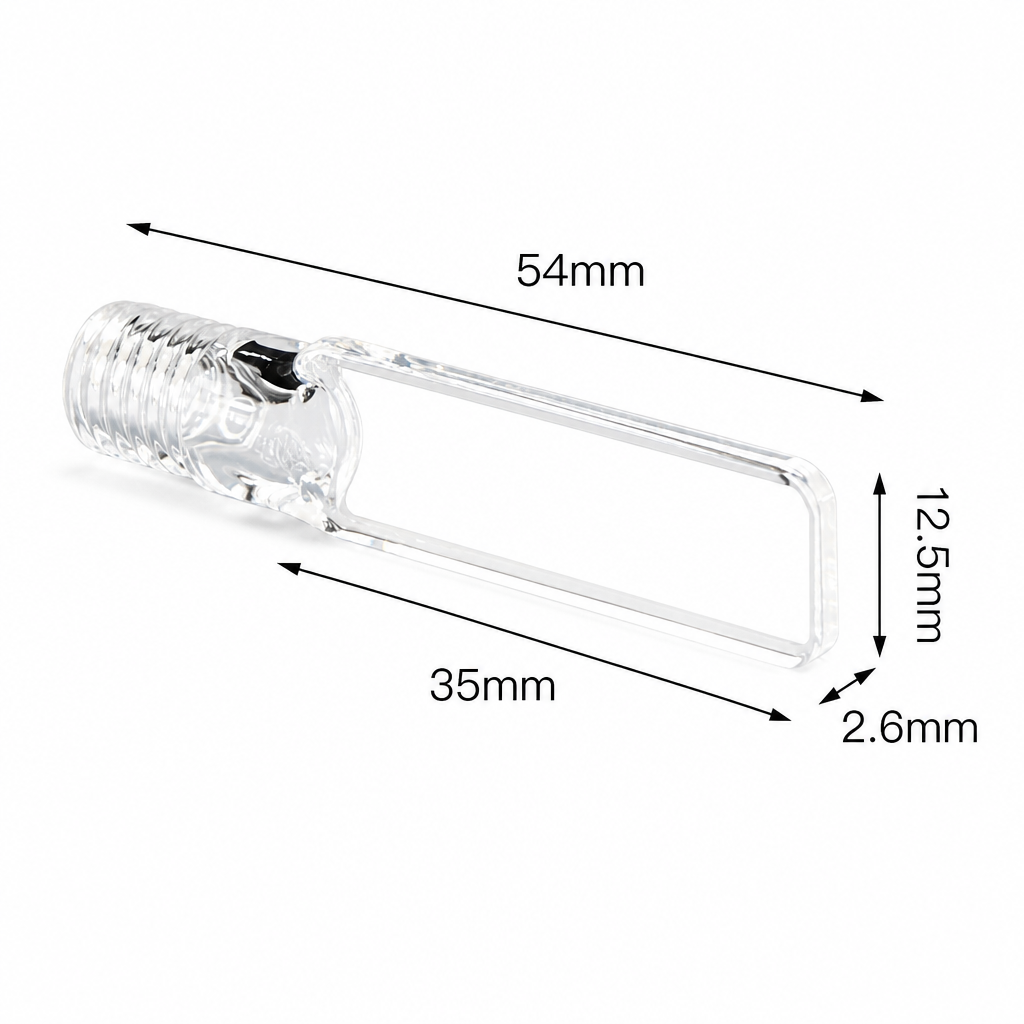

The bare optical body is 12.5 × 2.6 × 35 mm, while the overall height with cap is 58 mm. Check both holder clearance and vertical access for fitting or removing the closure, because the body dimensions do not represent the full assembled envelope.

Z Height is not established for this SKU, so instrument fit should be checked against your holder and beam position before ordering. The M10 thread is the closure connection at the neck, not a pressure-rated fluid fitting.

English selection reference
Selection reference ↗

Solvents and cleaning

Molded 83 is commonly selected for methods that may involve organic solvents or heated measurement conditions. Suitability for this assembled cell still depends on the actual liquid, concentration, temperature, contact time and the complete body-and-closure combination.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning methods, and clean the exterior optical faces gently with non-abrasive optical tissue.

Included with this option

1 Quartz Screw-Top Cuvette and accompanying closure. The listed price is for 1 piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving path length, capacity, external envelope, optical windows, closure details and tolerances. If you need a modified version, send your drawing or holder details, sample conditions and required quantity.
