(C102CR25) Quartz Micro Cuvette, 10 mm Path, 1.05 mL

Weight	30 g

SKU: C102CR25

Original price was: $143.00.Current price is: $129.00.

In Stock

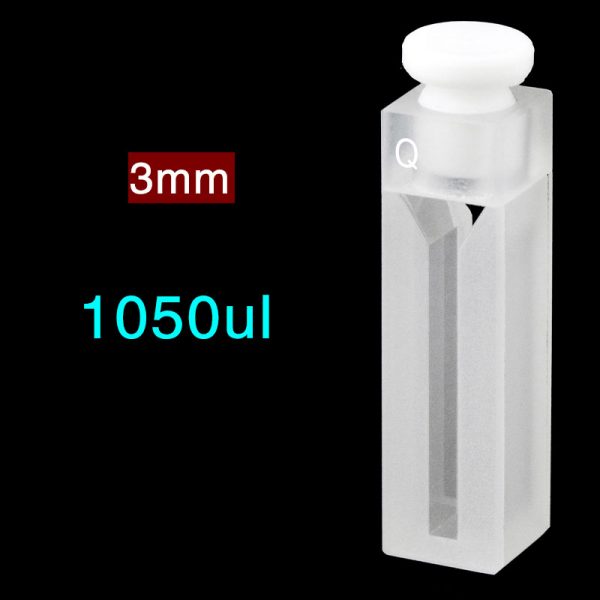

C102CR25 is a JGS1 quartz micro cuvette with a 10 mm optical path, Two-Way Light layout and 1.05 mL nominal capacity. Its compact closed-top format and 3 mm stated sample region suit transmission measurements in a smaller body than a full-size cuvette. Supplied as 1 cuvette with closure.

In Stock

SKU: C102CR25 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CR25 is a JGS1 quartz micro cuvette with a 10 mm optical path, Two-Way Light layout and 1.05 mL nominal capacity. It is a compact closed-top option for transmission measurements where you want a standard 10 mm path in a smaller cell body, with a stated 3 mm sample region and a supplied closure for routine handling. This sale option is supplied as 1 cuvette with closure.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	3 mm

Choose this option

Choose C102CR25 when your method uses a single 10 mm light path and does not require four-side optical access. The compact 12.5 × 12.5 mm footprint is easier to place where holder space is limited, while the closed-top format suits routine loading and transfer for small-volume work built around the nominal 1.05 mL capacity.

What makes this option different

10 mm optical path with Two-Way Light transmission geometry.
1.05 mL nominal capacity in a compact micro cuvette body.
Stated 3 mm sample region for beam-footprint planning.
Supplied as 1 cuvette with closure.

Using this cell

Fill the cuvette so the intended measurement region is fully covered and free of bubbles, then place it in the holder in a consistent orientation for both blank and sample readings. Keep the optical faces clean and avoid dried residue across the window areas.

This item is supplied with a closure for closed-top handling. Seat the closure gently after filling and check that it is positioned correctly before moving the cuvette. The 1.05 mL figure is the nominal capacity, not a minimum working volume, so the actual fill level should be set by your beam position and measurement setup.

First-use check

Inspect the optical faces and top opening area before the first measurement.
Test-fit the empty cuvette in the holder and check top clearance with the closure in place.
Run a blank in your intended measurement orientation before loading sample.

Fit and optical alignment

The external dimensions are 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. This shorter body height is the main dimension to check if your holder, clamp or instrument cover has limited vertical space around the cell position.

The stated 3 mm sample region should be checked against your beam footprint, especially if your instrument uses a narrow or fixed beam position. Z Height is not specified for this cuvette, so setups that depend on a defined beam centre height should be checked before ordering.

Solvents and cleaning

This cuvette is described by the supplier as having fused integrated construction. Choose sample and cleaning conditions for the complete assembled cell, including the closure, and review chemical exposure carefully if your method involves aggressive reagents or extended contact time.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with suitable non-abrasive laboratory wipes or optical tissue. If you need a different construction approach for a specific solvent routine, see MQ Cuvette Fabrication Glossary.

Included with this option

1 quartz micro cuvette with closure.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch together with holder details, beam-height requirements, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C102CR25.
