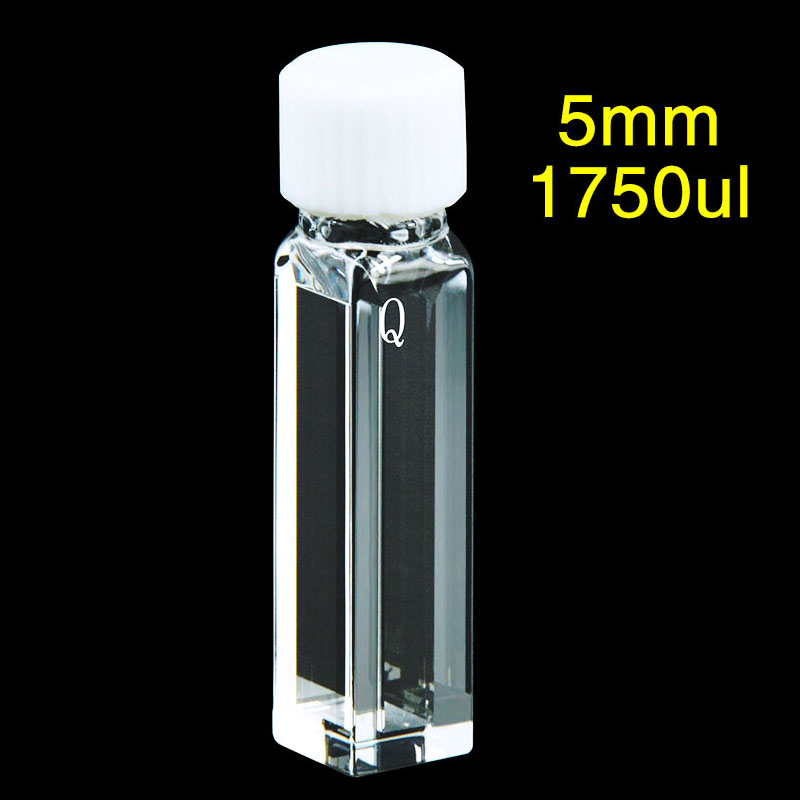

(C104TE12) Quartz Micro Cuvette, 10 mm Path, 1.75 mL

Weight	30 g

SKU: C104TE12

Original price was: $475.00.Current price is: $428.00.

In Stock

C104TE12 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and 1.75 mL nominal capacity. This version uses a 5 mm sample-region width and a screw-cap format for enclosed handling in a larger micro-cuvette option. Sold as 1 cuvette with closure included.

In Stock

SKU: C104TE12 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TE12 is a JGS1 quartz micro cuvette with a 10 mm optical path, Four-Way Light access and 1.75 mL nominal capacity for fluorescence spectroscopy. This option pairs a 5 mm sample-region width with a screw-cap closure, making it the roomiest version in this related group for users who want a wider sample region in an enclosed micro-cuvette format. This listing is for 1 cuvette, with closure included.

Path Length: 10 mm
Sample Volume (Nominal): 1.75 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	5 mm
Sample Volume (Nominal)	1.75 mL
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	5 mm

Choose this option

Choose C104TE12 when your fluorescence setup needs a 10 mm path length together with the widest stated sample-region width in this series. The 5 mm sample-region width and 1.75 mL nominal capacity are useful when your beam footprint, sample handling routine or preferred fill plan calls for more room than the narrower variants provide.

What makes this option different

10 mm optical path for fluorescence methods built around this path length.
Four-Way Light configuration with optical access on all four vertical sides.
5 mm sample-region width as the defining geometry of this option.
1.75 mL nominal capacity for the largest listed fill size in this related group.
Screw-cap closure included for enclosed filling and routine handling.
JGS1 quartz with Molded 83 fabrication for quartz cuvette applications where this construction style is preferred.

Using this cell

Fill the cuvette so the intended illuminated region is fully covered and free of bubbles. Keep the exterior optical faces clean, and use the same seating direction for blank and sample measurements so the optical path and observed region stay consistent.

Seat the cap gently on clean contact surfaces before measurement. The 1.75 mL figure is the nominal cell capacity, not a minimum working volume, so the actual fill level should be checked in your own instrument against the beam position.

First-use check

Inspect the cuvette body, optical faces and closure seating area before first use. Then test-fit the cell in the holder, run a blank and confirm that your working fill level covers the illuminated region without trapped bubbles.

Fit and optical alignment

The stated 5 mm dimension refers to the sample-region width for this cuvette option. Use that dimension to judge whether the illuminated region suits your beam footprint rather than selecting by nominal capacity alone.

Z Height is not established for this option, and no verified overall fit envelope is provided here. If your setup has limited compartment space or a fixed beam-center height, check holder clearance and alignment before ordering.

Solvents and cleaning

This cuvette uses Molded 83 fabrication. This construction style is commonly selected for methods that may involve organic solvents or temperature-controlled work, but suitability still depends on the complete assembly and your actual chemical conditions.

Exact chemical limits for this specific option are not established here. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with non-abrasive optical tissue.

Included with this option

1 quartz micro cuvette with screw cap.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving path length, sample volume, optical layout, sample-region geometry, holder fit, Z Height and closure style. Send a dimensioned drawing or labelled sketch together with holder details, sample conditions and target quantity through Discuss your requirements and quote C104TE12.
