Quartz 10mm Micro Fluorescence Cuvette, 1.05 ml, Molded 83, Four-Way Light, PTFE Cap, 1pc/ea, C104CE19

Weight	30 g

SKU: C104CE19

Quartz 10mm Micro Fluorescence Cuvette 1.05 ml Molded 83 Four-Way Light PTFE Cap C104CE19

Original price was: $323.00.Current price is: $291.00.

In Stock

Quartz 10 mm micro fluorescence cuvette with 1.05 ml capacity and four-way light. Molded 83 (>83% transmittance, ±0.02 mm tolerance). PTFE cap. 190–2500 nm. SKU: C104CE19.

In Stock

SKU: C104CE19 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

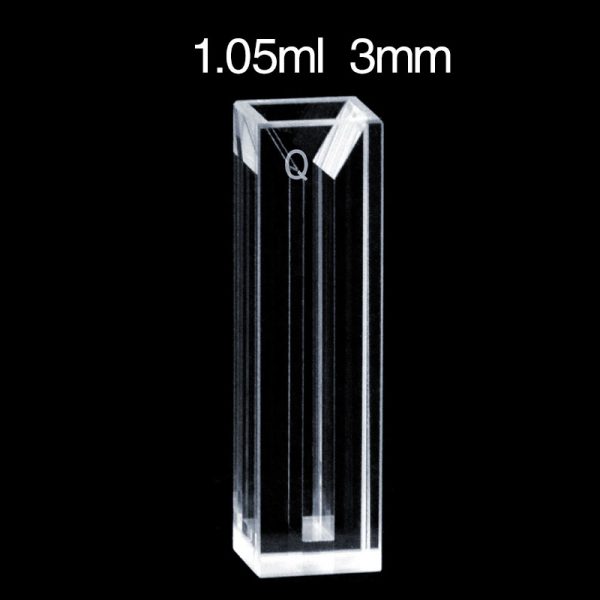

The C104CE19 is a precision quartz micro fluorescence cuvette with 10 mm path length and four optically polished faces, designed for quantitative fluorescence and absorbance spectroscopy (190–2500 nm) at a significantly reduced sample volume. The 3 mm interior width brings the working volume down to 1.05 ml — just 30% of a standard 3.5 ml cell — an especially useful capacity when expensive fluorescent labels, limited biological extracts, or rare synthetic intermediates must be measured at the standard 10 mm optical path. All four faces support 90° excitation/emission geometry for fluorescence spectroscopy. Molded 83 fabrication (1200 °C fusion, ±0.02 mm tolerance) produces the tightest cell-to-cell dimensional match in the product range — an advantage when running paired sample/reference measurements where any geometric mismatch appears as systematic error. Transmittance exceeds 83% across the full UV-Vis-NIR range. Sealed with a PTFE cap.

Technical Specifications
Material	Quartz (Fused Silica)	SKU	C104CE19
Path Length	10 mm	Volume	1.05 ml
Optical Windows	4 (Four-Way Light)	Wavelength	190–2500 nm
Fabrication	Molded 83	Transmittance	>83%
Exterior Dimensions	12.5 × 12.5 × 45 mm	Interior Dimensions	10 × 3 × 43 mm
Cap	PTFE Cap	Package	1 pc/ea

Applications

◆ Matched-pair quantitative fluorescence measurements

◆ Fluorescence quantum yield with limited sample

◆ Intrinsic protein fluorescence (tryptophan emission)

◆ FRET distance calibration

◆ Fluorescence polarization / anisotropy

◆ Rare fluorescent compound characterization

Precision That Matters in Fluorescence

Fluorescence intensity is proportional to the volume of sample illuminated by the excitation beam. Any variation in the internal geometry between sample and reference cuvettes translates directly into measurement error. The Molded 83 process (1200 °C fusion, ±0.02 mm tolerance) delivers the tightest dimensional reproducibility available, minimizing cell-to-cell variability that can mask subtle fluorescence changes in binding assays, FRET experiments, or quenching titrations. The adhesive-free bond is compatible with aqueous buffers, organic solvents, and dilute acids/bases.

Why Micro Volume?

Internal quartz masking walls narrow the measurement chamber to 3 mm while maintaining the full 10 mm optical path (Beer–Lambert law: A = εlc). This saves 70% of sample compared to a standard 3.5 ml cuvette, making it ideal for precious biological samples, costly fluorescent labels, or limited synthetic fractions. The micro volume design keeps the sample at full column height — compatible with all spectrophotometer beam heights (8.5 mm, 15 mm, or 20 mm) without verification.

Usage Tips: Handle by the top rim only — all four optical faces must remain free of fingerprints. Fill to at least 15 mm above the beam center height. Clean with spectroscopic-grade solvent and lint-free tissue after each use. Molded 83 construction is compatible with most laboratory solvents including water, ethanol, DMSO, and dilute acids/bases. Avoid HF (hydrofluoric acid). Compatible with Shimadzu, Agilent, PerkinElmer, Thermo Fisher, JASCO, Horiba, Edinburgh Instruments, and most commercial fluorimeters and UV-Vis spectrophotometers.

Custom Orders & Academic Purchasing: Need a custom size, path length, or window configuration? We offer made-to-order cuvettes tailored to your specifications. Academic institutions: we accept Purchase Orders (POs) with pay-after-delivery terms. Contact us for quotes and custom requests.

Disclaimer: This product is intended for laboratory and research use only. It is not designed, approved, or intended for use in medical diagnostics, therapeutic procedures, or any clinical application involving human or animal subjects. The buyer assumes all responsibility for determining the suitability of this product for their specific application.
