Quartz 10mm Micro Fluorescence Cuvette, 1.05 ml, Standard 80, Four-Way Light, PTFE Cap, 1pc/ea, C104CS54

Weight	30 g

SKU: C104CS54

Quartz 10mm Micro Fluorescence Cuvette 1.05 ml Standard 80 Four-Way Light PTFE Cap C104CS54

Original price was: $72.00.Current price is: $65.00.

In Stock

Quartz 10 mm micro fluorescence cuvette with 1.05 ml capacity and four-way light. Standard 80 (>80% transmittance). PTFE cap. 190–2500 nm. Aqueous samples. SKU: C104CS54.

In Stock

SKU: C104CS54 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

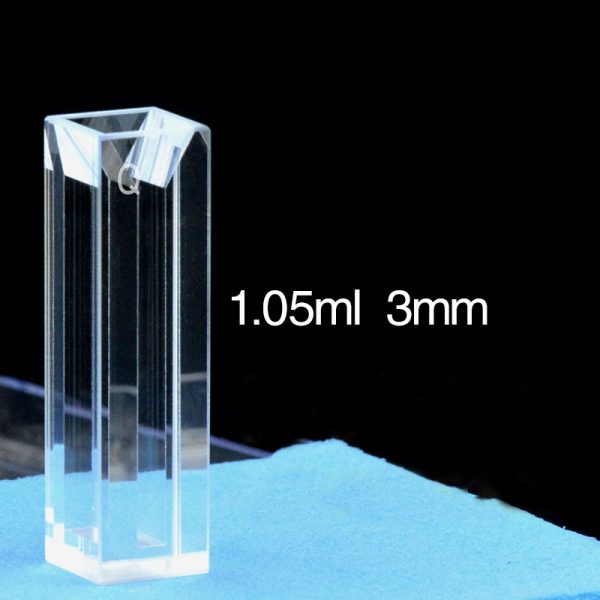

The C104CS54 is a quartz micro fluorescence cuvette with 10 mm path length and four optically polished faces, offering 90° fluorescence capability and a 1.05 ml working volume at the lowest cost per cell in the 1.05 ml fluorescence range. The 3 mm interior width retains the full 10 mm optical path for Beer–Lambert quantification while using only 30% of the sample required by a standard 3.5 ml cell. Standard 80 precision-glued construction provides >80% transmittance across 190–2500 nm — adequate for routine fluorescence assays, undergraduate laboratory courses, and high-throughput biological screening where dozens of cuvettes may be in use simultaneously. Sealed with a PTFE cap.

Technical Specifications
Material	Quartz (Fused Silica)	SKU	C104CS54
Path Length	10 mm	Volume	1.05 ml
Optical Windows	4 (Four-Way Light)	Wavelength	190–2500 nm
Fabrication	Standard 80	Transmittance	>80%
Exterior Dimensions	12.5 × 12.5 × 45 mm	Interior Dimensions	10 × 3 × 43 mm
Cap	PTFE Cap	Package	1 pc/ea

Applications

◆ Undergraduate fluorescence spectroscopy labs

◆ Bulk fluorescence screening of aqueous samples

◆ DNA/RNA quantification with SYBR Green, EtBr, or PicoGreen

◆ Protein thermal-shift (differential scanning fluorimetry)

◆ Fluorescent-ligand binding in aqueous buffer

◆ Multi-cuvette parallel assays where cost per cell matters

Affordable Four-Way Fluorescence

Standard 80 precision-glued construction keeps the per-unit cost well below sintered and molded alternatives while providing the same four-polished-face geometry needed for 90° fluorescence measurements. For laboratories measuring aqueous biological samples — protein solutions, nucleic acid preparations, dye-labeled conjugates in buffer — the adhesive bond is fully compatible and the >80% transmittance delivers clean baselines. This is the sensible choice when equipping a teaching lab with 20+ cuvettes or stocking a QC bench for daily throughput. Note: the adhesive bonds are designed for aqueous samples only. For organic solvents or aggressive reagents, choose Sintered 83 or Molded 83.

Why Micro Volume?

Internal quartz masking walls narrow the measurement chamber to 3 mm while maintaining the full 10 mm optical path (Beer–Lambert law: A = εlc). This saves 70% of sample compared to a standard 3.5 ml cuvette, reducing reagent costs across large batches of measurements. The micro volume design keeps the sample at full column height — compatible with all spectrophotometer beam heights (8.5 mm, 15 mm, or 20 mm) without verification.

Usage Tips: Handle by the top rim only — all four optical faces must remain free of fingerprints. Rinse immediately after use with an appropriate solvent. Standard 80 adhesive bonds are suitable for aqueous samples only (water, buffers, dilute salt solutions). Do not use with organic solvents, strong acids, or strong bases. For organic or corrosive solvents, upgrade to Sintered 83 or Molded 83. Compatible with Shimadzu, Agilent, PerkinElmer, Thermo Fisher, JASCO, Horiba, Edinburgh Instruments, and most commercial fluorimeters and UV-Vis spectrophotometers.

Custom Orders & Academic Purchasing: Need a custom size, path length, or window configuration? We offer made-to-order cuvettes tailored to your specifications. Academic institutions: we accept Purchase Orders (POs) with pay-after-delivery terms. Contact us for quotes and custom requests.

Disclaimer: This product is intended for laboratory and research use only. It is not designed, approved, or intended for use in medical diagnostics, therapeutic procedures, or any clinical application involving human or animal subjects. The buyer assumes all responsibility for determining the suitability of this product for their specific application.
