(C204CR) Quartz Fluorescence Cuvette, 50 mm / 20 mm (dual path) Path, 40 mL
Original price was: $252.00.$227.00Current price is: $227.00.
C204CR is a JGS1 quartz fluorescence cuvette with a 50 mm / 20 mm dual optical path in one open-top rectangular cell body. Its Four-Way Light layout and 40 mL nominal capacity suit fluorescence work that needs side optical access and a larger sample chamber. Sold per 1 cuvette.
Description
C204CR is a JGS1 quartz fluorescence cuvette for methods that need two stated optical directions in one cell body. This open-top rectangular cuvette combines a 50 mm path with a 20 mm path, Four-Way Light side access and a 40 mL nominal capacity, so you can fill directly from above and use the same cell in either declared orientation. It is a practical choice when your setup needs a larger sample chamber and side optical access rather than a small square fluorescence cell.
- Path Length
- 50 mm / 20 mm (dual path)
- Sample Volume (Nominal)
- 40 mL
- Opening Configuration
- Open Top (Cell Body)
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Fluorescence Cuvette |
| Measurement Mode | Fluorescence Spectroscopy |
| Path Length | 50 mm / 20 mm (dual path) |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 40 mL |
| External Dimensions | 54 × 24 × 52 mm |
| Uncapped Cell Dimensions | 54 × 24 × 52 mm |
| External Dimensions Scope | Uncapped Cell |
| Body Height | 52 mm |
| Internal Dimensions | 50 × 20 × 50 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Opening Configuration | Open Top (Cell Body) |
Choose this option
Choose C204CR when your method is built around the listed 50 mm / 20 mm geometry and an open sample chamber. The long rectangular internal space gives direct top access for filling, rinsing and visual checking, while the two stated path directions let you work with the longer or shorter optical route in the same cuvette body. That matters when the chamber shape and beam direction are part of your method setup, not just the nominal volume.
What makes this option different
- Two stated optical directions in one body: the 50 mm and 20 mm paths are both part of this exact cuvette, so orientation matters during setup and repeat measurements.
- Four-Way Light side access: the four side faces are intended for side optical access, which suits fluorescence arrangements that use this geometry.
- Open-top chamber: sample is added from above, which is helpful for direct pipetting, rinsing and checking the liquid condition before measurement.
- 50 × 20 × 50 mm internal chamber: the chamber is long and rectangular rather than square, so the sample region and beam direction should be planned together.
- 40 mL nominal capacity: this is a larger-volume cuvette body intended for methods that need a more substantial filled chamber, not a micro-volume format.
- Powder-fused construction: the supplier identifies this cuvette with a powder-fused construction term, which indicates a fused-assembly type rather than a simple adhesive-bonded description. For selection, this matters mainly as a construction style to review alongside your sample chemistry and cleaning method, rather than as a promise of a specific tolerance or chemical rating.
Using this cell
Fill the chamber from the top and keep the cell orientation consistent between blank and sample measurements. Because this cuvette has both a 50 mm path and a 20 mm path, routine use includes checking which direction your method is using before you place the cell in the instrument.
The open rectangular chamber gives direct access for pipetting and rinse cycles. Before measurement, check that the intended beam area is free of bubbles, droplets and residue, and keep the side optical faces clean and dry on the outside.
First-use check
Inspect the top opening and optical faces for chips, dust or handling residue. Rinse with a liquid suitable for your method, then fill with a blank and verify that the cuvette is oriented for the intended 50 mm or 20 mm optical direction before routine use.
Fit and optical alignment

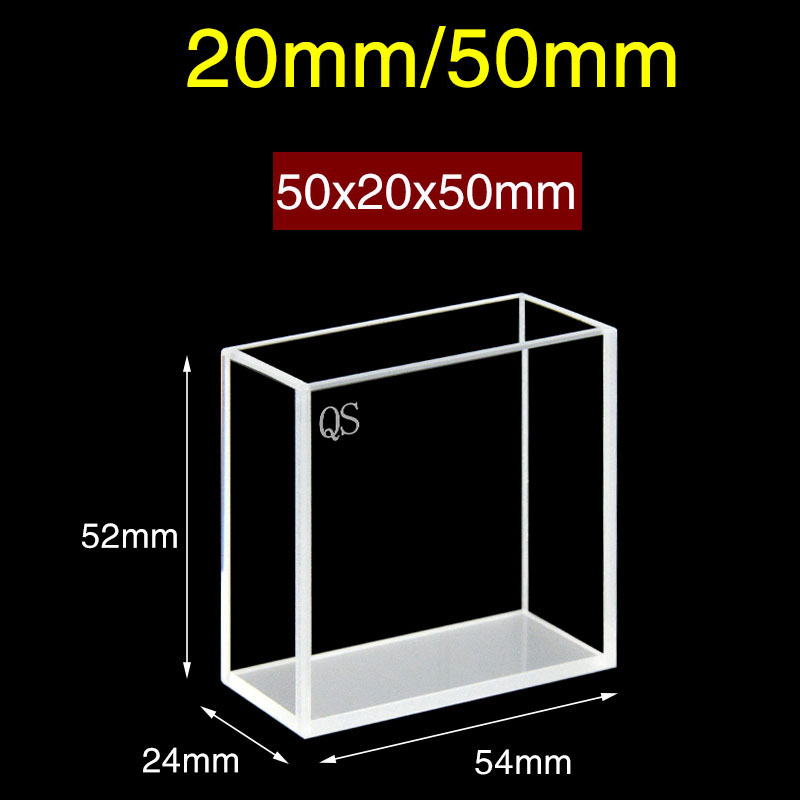

The uncapped cell body measures 54 × 24 × 52 mm. The internal chamber is 50 × 20 × 50 mm, so holder clearance and surrounding hardware should be checked with this rectangular body shape in mind, especially if your setup is tight around the longer side of the cuvette.
This listing describes the uncapped open cell body. Z Height is not stated here, and total installed height with any separate cover, holder or fixture is not given, so instrument setups that depend on a defined beam-center position should be checked before ordering.
Solvents and cleaning
This quartz cuvette is listed for fluorescence spectroscopy use, with a stated wavelength range of 200–2500 nm. For general fabrication background, see Compare fabrication options.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. Cleaning liquid choice should match your actual sample chemistry and operating conditions.
Included with this option
1 cuvette per listed price unit. If you need a supplied closure or other accessory, contact us before ordering.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures, connections and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and optical direction that matter to your setup. Discuss your requirements and mention part number C204CR.
Additional information
| Weight | 100 g |
|---|
