(C204CR1) Quartz Fluorescence Cuvette, 50 mm / 20 mm (dual path) Path, 54.4 mL

Weight100 g
SKU: C204CR1

Original price was: $357.00.Current price is: $322.00.

In Stock

C204CR1 is a JGS1 quartz fluorescence cuvette with a 50 mm / 20 mm dual path, Four-Way Light side access and a 54.4 mL nominal capacity. Its open-top rectangular chamber gives direct filling access and a tall internal sample region for methods that need this longer dual-path geometry. Sold per 1 cuvette.

In Stock
Add to Wishlist
Add to Wishlist
SKU: C204CR1 Categories: , , Brand:
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C204CR1 is a JGS1 quartz fluorescence cuvette with a 50 mm / 20 mm dual-path layout in one open-top rectangular body. It combines Four-Way Light side access with a 54.4 mL nominal capacity, making it useful when your method needs both the longer optical direction and a taller sample region. The open chamber also keeps filling, rinsing and visual inspection straightforward from above.

Path Length
50 mm / 20 mm (dual path)
Sample Volume (Nominal)
54.4 mL
Opening Configuration
Open Top (Cell Body)

Selection Specifications

Product KindCuvette
Cell TypeFluorescence Cuvette
Measurement ModeFluorescence Spectroscopy
Path Length50 mm / 20 mm (dual path)
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)54.4 mL

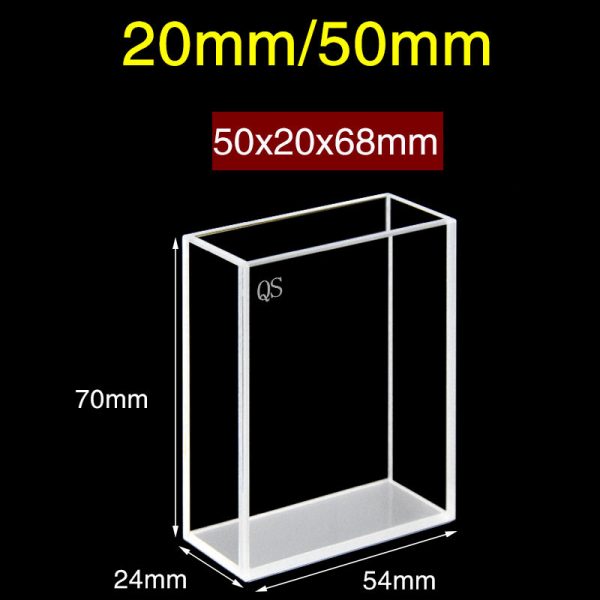

External Dimensions54 × 24 × 70 mm
Uncapped Cell Dimensions54 × 24 × 70 mm
External Dimensions ScopeUncapped Cell
Body Height70 mm
Internal Dimensions50 × 20 × 68 mm
MaterialQuartz
Material GradeJGS1
Opening ConfigurationOpen Top (Cell Body)

Choose this option

Choose C204CR1 when you need a rectangular fluorescence cell that offers two stated optical directions, 50 mm and 20 mm, in the same body. The internal chamber is 50 × 20 × 68 mm, so this option suits work that benefits from a long path in one direction, a shorter path in the other, and enough chamber height to handle a larger nominal fill than lower-profile versions of this format.

What makes this option different

  • Open-top access gives direct entry to the sample chamber for filling, rinsing and visual checking from above. This is useful when you want unobstructed access to the liquid region rather than working through a cap or port.
  • 50 mm / 20 mm dual path geometry places two declared optical directions in one cuvette body. That helps when your setup uses this exact rectangular orientation and you need to keep the selected long or short direction consistent during measurement.
  • Four-Way Light configuration provides side optical access around the rectangular body. In fluorescence work, this supports layouts that use the stated side-window arrangement, but beam position and holder fit still need to match your instrument.
  • 54.4 mL nominal capacity with a 50 × 20 × 68 mm internal chamber gives a tall sample region for methods that require this larger rectangular volume. The nominal figure describes the chamber capacity, not a minimum working fill.
  • Powder-fused construction is the supplier term for this exact version. In practical use, it identifies this specific joined-cell build rather than a monolithic body, so selection should be based on the stated geometry and your sample and cleaning conditions, not on assumed tolerance or chemical-performance claims.

Using this cell

Fill the chamber from the top and keep the body in a consistent orientation between blank and sample runs so the intended 50 mm or 20 mm optical direction stays the same. This matters more in a dual-path cell than in a single-direction body, because rotating the cuvette changes which stated path the beam crosses.

The tall chamber is helpful when you need the listed nominal capacity and a deeper open sample region for handling. Before measurement, check that the beam area is free from bubbles, droplets and residue, and avoid touching the optical faces during filling.

First-use check

Inspect the optical faces and the top opening for chips, dust or residue. Rinse with a cleaning liquid suitable for your method, then fill with a blank and confirm the cuvette orientation you will use for the 50 mm or 20 mm optical direction.

Fit and optical alignment

The uncapped body dimensions are 54 × 24 × 70 mm. Use these dimensions to check holder clearance around the bare cell body and to plan access above the opening for filling and cleaning.

Z Height is not listed for this SKU, and the overall installed height with any separate cover, fixture or support is not stated here. If your instrument depends on a defined beam-center height, confirm that alignment separately before ordering.

Solvents and cleaning

This quartz cuvette is listed for fluorescence spectroscopy use from 200–2500 nm. For general fabrication background, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. Choose cleaning liquids according to your sample chemistry and the full wetted assembly you plan to use.

Included with this option

1 cuvette per listed price unit. If you need a supplied closure or other accessory, contact us before ordering.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures, connections and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and optical direction that matter to your setup. Discuss your requirements and mention part number C204CR1.
