(C504CR5) Quartz Rectangular Sample Cell, 50 mm Path

Weight	100 g

SKU: C504CR5

Original price was: $265.00.Current price is: $239.00.

In Stock

C504CR5 is a JGS1 quartz rectangular sample cell for UV/Vis work with a 50 mm optical path, Four-Way Light access and an included closure. Its low-profile square body suits broad sample-region work where overhead clearance is limited. Supplied as 1 cell with closure included.

In Stock

SKU: C504CR5 Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C504CR5 is a rectangular JGS1 quartz sample cell for UV/Vis spectroscopy with a 50 mm optical path, Four-Way Light geometry and an included closure. It combines a broad square chamber with a low 25 mm body height, making it useful when you need side optical access without adding much height above the holder.

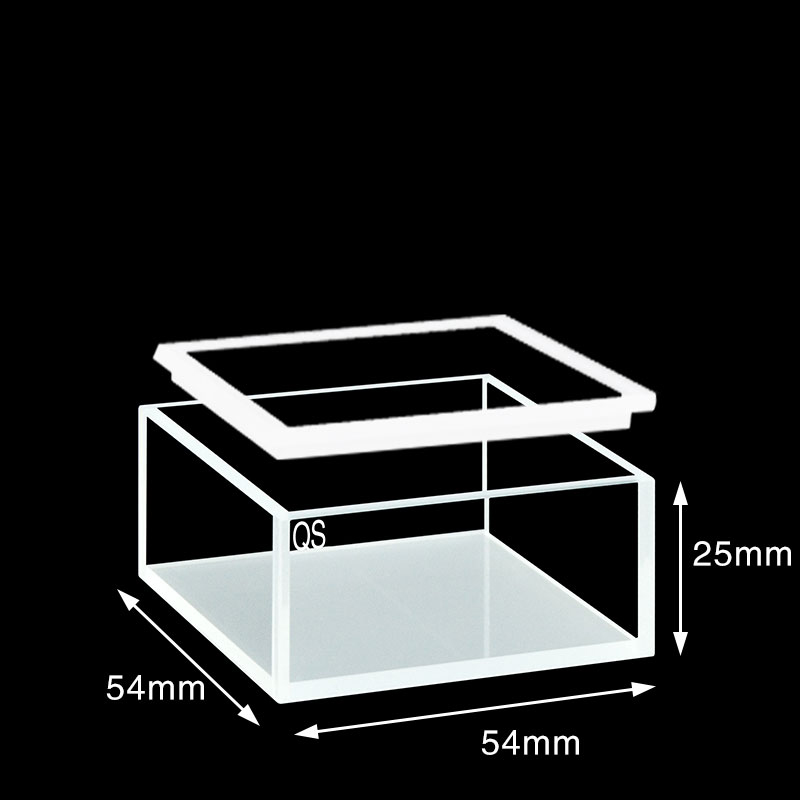

This option suits setups that need a covered rectangular body rather than an open-top version, while still keeping optical access on all four faces. The body measures 54 × 54 × 25 mm, with an internal chamber of 50 × 50 × 23 mm, so selection should be based on both footprint and beam-position fit.

Path Length: 50 mm
Cell Type: Rectangular Sample Cell
Closure Type: Flat Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	50 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
External Dimensions	54 × 54 × 25 mm
Cell Body Dimensions	54 × 54 × 25 mm
External Dimensions Scope	Body Only
Body Height	25 mm
Internal Dimensions	50 × 50 × 23 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Flat Lid
Closure Included	Yes
Wall Thickness	2 mm

Choose this option

Choose C504CR5 when your method uses a 50 mm path and you want a shallow square chamber with a supplied closure. The low-profile body helps where vertical space is limited, while the four-side optical layout supports arrangements that use more than one side of the cell.

What makes this option different

50 mm optical path in a low-profile rectangular sample cell.
Four-Way Light layout with optical access on all four sides.
54 × 54 × 25 mm body with a 50 × 50 × 23 mm internal chamber.
Closure included for a covered configuration in routine handling.

Using this cell

Fill the chamber so the liquid fully covers the beam region used by your instrument or optical setup. Remove visible bubbles from the optical path, and keep the same orientation between blank and sample runs if your alignment is side-specific.

The supplied closure gives this version a covered format for normal handling, but it should not be treated as a rated seal. If your process depends on sealing performance, controlled evaporation or a specific closure material, those points should be checked separately.

First-use check

Inspect the optical faces and edges for chips, residue or shipping damage.
Check fit in the holder with attention to both body clearance and closure area.
Rinse with a suitable liquid for your method before first use.
Run a blank to confirm alignment and handling routine.

Fit and optical alignment

The listed external dimensions are body only: 54 × 54 × 25 mm. They do not include any additional height introduced by the closure area, so check holder seating, side clearance and top clearance in your fixture before ordering.

Z Height is not specified for this SKU. If your instrument uses a fixed beam position, check beam-center requirements against the chamber geometry before purchase. The nominal chamber capacity is also not settled here, so operating fill should be planned from your own beam coverage and handling method.

Solvents and cleaning

Quartz is used here for UV/Vis work. For general construction background, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive optical tissue. Chemical limits for the complete assembly are not established here, and the closure material is not specified, so aggressive sample or cleaning conditions should be reviewed carefully before use.

Included with this option

1 rectangular sample cell. A closure is included with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review related custom JGS1 quartz versions for changes to dimensions, optical path length, chamber geometry, openings or related build details. Send a dimensioned drawing or labelled sketch together with holder or instrument details, sample conditions and target quantity. You can contact us here and quote part number C504CR5.
