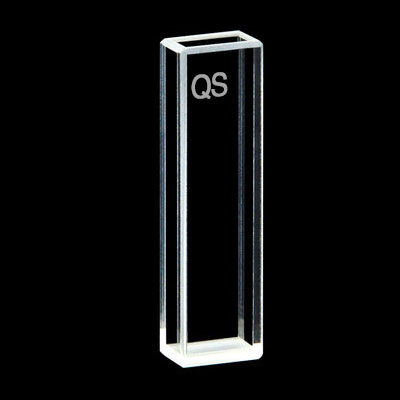

(C054CR1) Quartz Fluorescence Cuvette, 5 mm Path, 1.75 mL

Weight	30 g

SKU: C054CR1

Original price was: $76.00.Current price is: $69.00.

In Stock

C054CR1 is a quartz fluorescence cuvette with a 5 mm optical path, Four-Way Light access and 1.75 mL nominal capacity. The open-top body gives direct filling access, and a closure is included. Supplied as 1 cuvette per sales unit.

In Stock

SKU: C054CR1 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C054CR1 is a quartz fluorescence cuvette for methods built around a 5 mm optical path and side optical access. Its open-top body lets you fill and inspect the sample directly from above, while the 1.75 mL nominal capacity gives a practical guide for sample preparation in this format. A closure is included, and this option is sold as one cuvette.

Path Length: 5 mm
Sample Volume (Nominal): 1.75 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	5 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	1.75 mL
External Dimensions	7.5 × 12.5 × 45 mm
Cell Body Dimensions	7.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Body Height	45 mm
Base Dimensions	7.5 × 12.5 mm
Material	Quartz
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C054CR1 when you need a compact fluorescence cell with direct top access rather than a fixed closed assembly. The combination of a 5 mm path, Four-Way Light layout and open sample chamber suits routine filling, blank/sample changes and visual checking before measurement.

What makes this option different

5 mm optical path for methods set up around this shorter path length.
Four-Way Light configuration for fluorescence work that uses side optical access around the sample region.
Open-top body for direct pipetting, sample inspection and routine cleaning access.
Closure included with one cuvette per sales unit.

Using this cell

Fill the cell from the top and keep the optical faces free from droplets, bubbles and dried residue in the beam area. For fluorescence measurements, use the same orientation for blank and sample runs so the optical directions remain consistent.

The stated 1.75 mL is a nominal capacity. It should be used as a filling guide, not as a minimum working volume, so methods that depend on partial filling or a defined beam height should be checked in the actual setup.

First-use check

Inspect the cuvette and closure for chips, contamination or shipping damage.
Rinse with a suitable liquid for your method before first use.
Place the cell in the holder and confirm seating, clearance and beam position.
Run a blank and check for bubbles or residue in the optical region.

Fit and optical alignment

The body dimensions are 7.5 × 12.5 × 45 mm. These dimensions are useful for checking holder seating and surrounding clearance, especially where side access or space above the cell is limited.

Z Height is not specified for this option. If your holder or instrument depends on a defined beam-centre height, do not assume fit from the outer body dimensions alone.

Solvents and cleaning

Quartz forms the cell body, but the chemical limits for this assembled option are not specified here. If your work involves aggressive solvents, mixed cleaning systems or long contact times, check the full assembly against your method before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the exterior optical faces gently with non-abrasive optical tissue. For fabrication background, see Compare fabrication methods.

Included with this option

Supplied as 1 quartz cuvette. A closure is included. The exact package contents beyond that are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, capacity, optical window arrangement, Z Height or closure style, we can review a custom quartz version for your setup. Send your drawing or labelled sketch, holder details, key dimensions and sample conditions through Discuss your requirements, and include part number C054CR1.
