(C033SS) Quartz Triangular Cell, 1.75 mL

Weight	30 g

SKU: C033SS

Original price was: $270.00.Current price is: $243.00.

In Stock

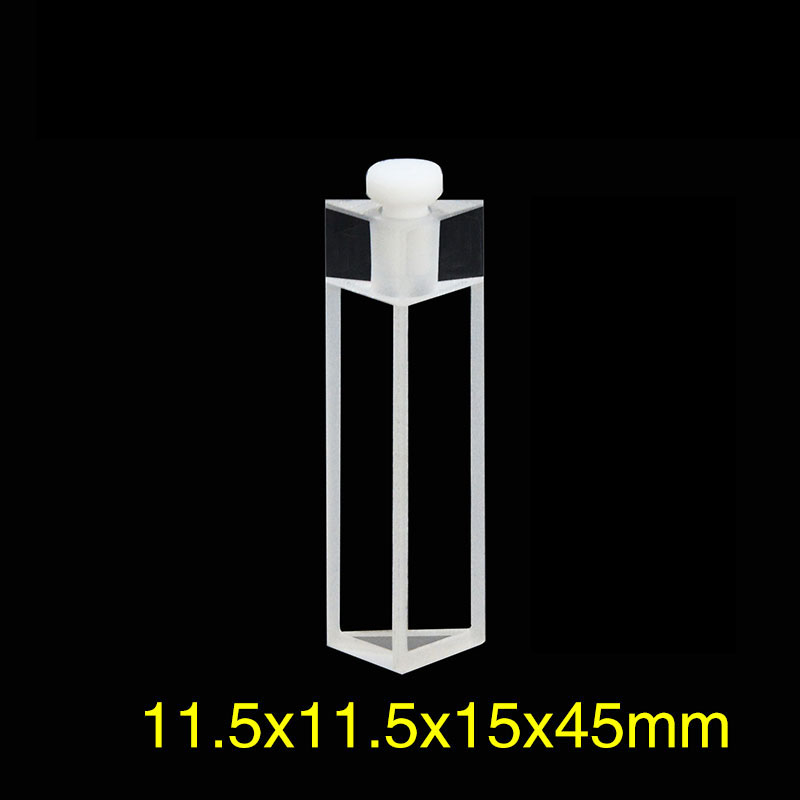

C033SS is a JGS1 quartz triangular cell with Three-Way Light access, 1.75 mL nominal capacity and a supplied PTFE stopper. Its compact triangular body supports optical access from three sides while keeping the sample chamber covered at the top, with outer side lengths of 11.5 mm, 11.5 mm and 15 mm and a 45 mm body height. Sold per 1 cuvette.

In Stock

SKU: C033SS Categories: Cuvettes, Products, Quartz Triangular Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C033SS is a JGS1 quartz triangular cell designed for measurements that use optical access from three sides of the cell body. This stoppered version combines a 1.75 mL nominal capacity with a supplied PTFE closure and a compact triangular section, making it a useful choice when the body shape and covered top both matter in the way you handle and position the sample.

The triangular cross-section uses outer side lengths of 11.5 mm, 11.5 mm and 15 mm, with a 45 mm body height. That geometry helps you plan holder clearance and repeatable orientation around the sample region, while the optical path length and Z Height are not specified for this listing.

Sample Volume (Nominal): 1.75 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Triangular Cell
Measurement Mode	UV/Vis Spectroscopy
Light Transmission Configuration	Three-Way Light
Sample Volume (Nominal)	1.75 mL
Body Height	45 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C033SS when you need a quartz triangular cell with three-side optical access and a PTFE stoppered top. It suits methods where the triangular body is part of the fit or alignment plan and where you want the sample chamber covered during handling or measurement rather than left open.

What makes this option different

PTFE stopper included: this option is supplied with a PTFE top closure for a covered sample chamber.
Three-Way Light configuration: the triangular body provides optical access from three sides for the intended measurement geometry.
Compact triangular section: the outer body uses 11.5 mm, 11.5 mm and 15 mm side lengths instead of a rectangular footprint.
1.75 mL nominal capacity: supports sample planning, but it is not a stated minimum working volume.
Fused integrated construction: this construction should be considered together with the liquids and cleaning routine used in your method.

Using this cell

Load the sample from the top opening and seat the PTFE stopper before measurement when your procedure requires the chamber to remain covered. Keep the same orientation for blank, standard and sample measurements so the same faces stay in the same optical positions.

Use clean handling around the optical faces and avoid touching polished areas directly. The stated 1.75 mL is a nominal capacity, so if your procedure depends on a validated working fill or beam height, that should be checked in your own setup.

First-use check

Inspect the quartz faces for cleanliness and check that the PTFE stopper fits properly.
Place the cell in the holder with a blank to confirm stable seating and repeatable orientation.
Make sure insertion and removal are clear at the top and around the triangular edges.

Fit and optical alignment

The 45 mm value refers to body height, and the cross-section is triangular rather than rectangular. Check holder clearance at the corners and around the top closure area before routine use, especially if your fixture was designed around square-body cells.

A specific path length and Z Height are not established for this listing. If your instrument or method requires a defined beam-center height or a known optical path, verify those points against your holder and beam geometry before ordering.

Solvents and cleaning

Quartz is suitable for many laboratory methods, but the exact chemical limits of this complete assembled option are not established here. If your samples or cleaning steps involve aggressive chemicals, prolonged contact or elevated temperature, please check the exact assembly before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Rinse promptly after use and wipe the outer optical faces gently with non-abrasive optical tissue. For fabrication background, see MQ Cuvette Fabrication Glossary.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with your holder or instrument information, sample conditions and target quantity. Discuss your requirements and reference C033SS.

Design notes for this configuration: Triangular Quartz Cuvette: Choosing a Different Viewing Geometry
