(MQQFC009) Quartz Rectangular Sample Cell, 2 mm Path, 320 µL, Open at Both Ends

Weight50 g
SKU: MQQFC009

$155.00

In Stock

MQQFC009 is a JGS1 quartz rectangular sample cell with a 2 mm optical path, Two-Way Light geometry and 320 µL nominal capacity. Its open-at-both-ends body is suited to custom holders or end fixtures where you define sealing and fluid handling outside the cell itself. Sold as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC009 is a compact JGS1 quartz rectangular sample cell for UV/Vis work from 200 to 2500 nm. It combines a 2 mm optical path with a 320 µL nominal capacity in an open-at-both-ends body, making it useful when you need a small rectangular sample region but want to choose the holder, end support and sealing arrangement yourself.

The Two-Way Light layout keeps the optical path straightforward, while the slim body helps when space around the cell is limited. This is a cell body rather than a ready-to-connect flow assembly, so connection details and pressure handling come from the fixture built around it.

Path Length
2 mm
Sample Volume (Nominal)
320 µL
Opening Configuration
Open at Both Ends

Selection Specifications

Product KindSpecialized Cell
Cell TypeRectangular Sample Cell
Measurement ModeTransmission Spectroscopy
Path Length2 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)320 µL
External Dimensions12.5 × 4.5 × 16 mm
Body Height16 mm
Base Dimensions12.5 × 4.5 mm
Internal Dimensions10 × 2 × 16 mm
MaterialQuartz
Material GradeJGS1
Fabrication MethodMolded 83
Opening ConfigurationOpen at Both Ends
Pack Quantity1 Piece

Choose this option

Choose MQQFC009 when your setup needs a short 2 mm transmission path in a very compact rectangular format. It is a practical option for custom-mounted liquid or transmission assemblies where the sample chamber size matters, but the end sealing and surrounding hardware are defined by your holder rather than built into the cell.

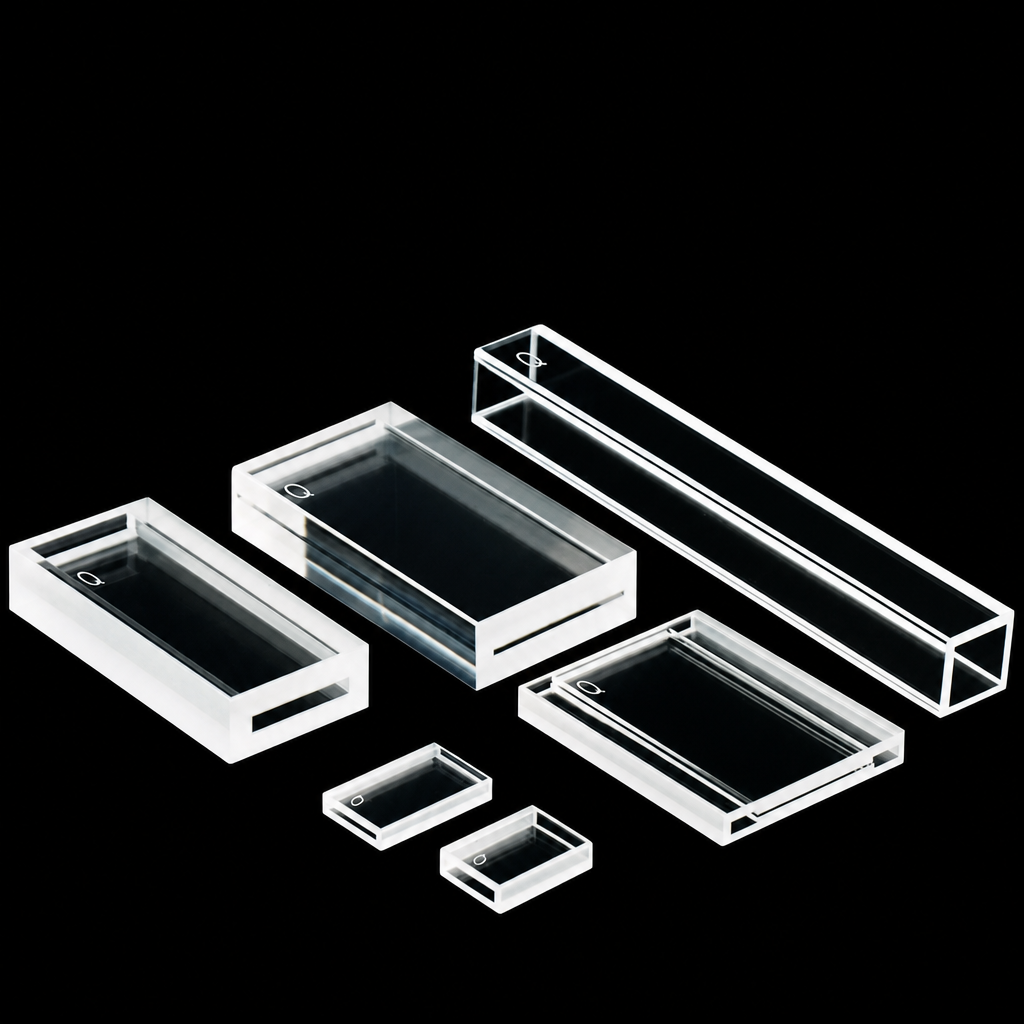

View the English selection reference. Also available in the product gallery. Group photographs illustrate other options in the series.

What makes this option different

  • 2 mm optical path: suited to methods built around a short transmission distance.
  • 320 µL nominal capacity: a compact chamber volume for small rectangular sample spaces.
  • Open at both ends: intended for a separate end support or sealing arrangement, not direct tubing connection by itself.
  • 12.5 × 4.5 × 16 mm exterior: a small body size for fixtures with limited clearance.

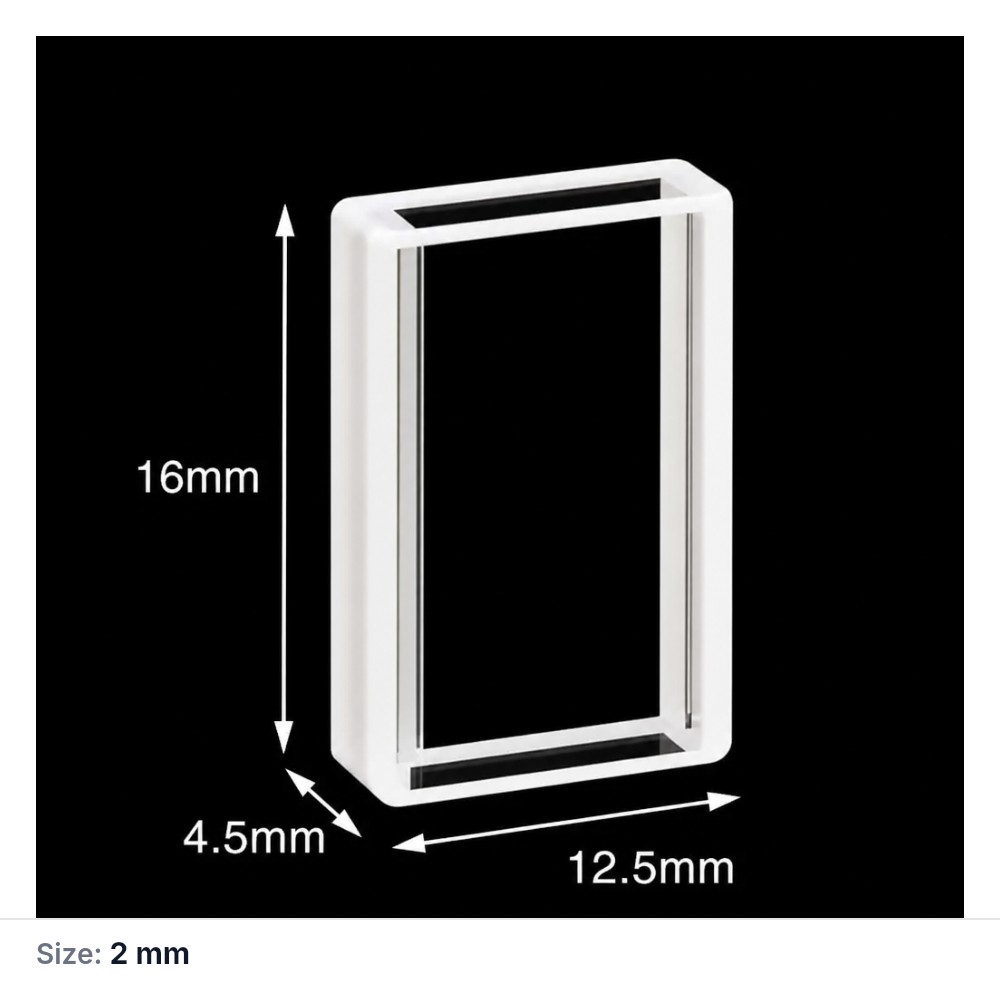

Structure and dimensions

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Install the cell so the light passes across the 2 mm path. The internal dimensions are 10 × 2 × 16 mm, which describe the sample chamber itself and help when planning how the sample will sit inside your fixture.

For liquid use, fill and seal the assembly through your own end arrangement, then clear bubbles before measurement. The 320 µL value is the nominal chamber volume of the cell body; the total liquid volume in use can change once seals, adapters or tubing are added to the final setup.

First-use check

  1. Inspect the optical faces and end edges for chips, residue or handling marks.
  2. Check the fit in the holder before introducing sample.
  3. Run a blank in the final measurement orientation and check for bubbles or exterior droplets.

Fit and optical alignment

Use the 12.5 × 4.5 × 16 mm external size to check holder clearance and support points. Support the body evenly and avoid concentrated force on the transmitting faces or end edges.

Z Height is not specified for this SKU, so beam-height matching should be checked in your holder or instrument setup. If your application depends on a fixed beam center, send the holder drawing and beam position before ordering.

English selection reference
Selection reference ↗

Solvents and cleaning

This SKU is listed under Molded 83. For methods involving organic solvents or heated use, review the full cell assembly, including any seals or fittings added in your setup.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces gently with suitable non-abrasive lab wipes.

Included with this option

1 rectangular sample cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for projects that need different path length, chamber size, external dimensions, opening details or fabrication options. If beam height, end sealing or holder fit is critical, send a drawing or sketch with the dimensions that matter to your setup.

Send a product-selection enquiry with SKU MQQFC009, your holder or interface details, sample conditions, quantity and delivery destination.
