(MQQMC083) JGS3 Quartz Demountable Cuvette, 0.1 mm Path, 10 µL
$377.00
A JGS3 quartz Demountable Cuvette with a 0.1 mm optical path, 10 µL nominal capacity and a removable quartz cover plate. This format gives direct access to the sample region before assembly for infrared or fluorescence work. Price is for one cell body with its accompanying cover plate.
Description
MQQMC083 gives you direct access to the sample region. This JGS3 quartz Demountable Cuvette combines a removable cover plate with a 0.1 mm optical path and 10 µL nominal capacity. You can place and inspect the sample before seating the cover, with the body and cover supported in a suitable fixture for your infrared or fluorescence measurement.
- Path Length
- 0.1 mm
- Sample Volume (Nominal)
- 10 µL
- Closure Type
- Removable Cover Plate
Selection Specifications
| Product Kind | Specialized Cell |
|---|---|
| Cell Type | Demountable Cuvette |
| Measurement Mode | Fluorescence Spectroscopy; Infrared Spectroscopy |
| Path Length | 0.1 mm |
| Wavelength Range — Upper Limit | 3800 nm |
| Sample Volume (Nominal) | 10 µL |
| External Dimensions | 12 × 2 × 45 mm |
| Body Height | 45 mm |
| Base Dimensions | 12 × 2 mm |
| Material | Quartz |
| Material Grade | JGS3 |
| Closure Type | Removable Cover Plate |
| Closure Material | Quartz |
| Closure Included | Yes |
| Fabrication Method | Standard 80 |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Demountable Cuvette; Accompanying closure |
Choose this option
Choose this format when the way you load the sample matters as much as the optical path. The removable quartz cover plate lets you place the sample directly in the measurement region before assembly, which is useful when a neck-filled cuvette shape is less convenient for your sample form or preparation routine.
What makes this option different
- 0.1 mm optical path for methods designed around a very short path length.
- Removable quartz cover plate for direct access to the sample region before measurement.
- 10 µL nominal capacity in a slim 12 × 2 × 45 mm body format.
- JGS3 quartz body and cover for infrared or fluorescence applications supported for this model.
Structure and dimensions


Using this cell
Place the sample in the intended region, then seat the cover plate carefully without trapping air, debris or excess liquid between the mating parts. Keep the same assembly method and orientation for background and sample measurements so the supported area and optical path remain consistent.
This demountable format is suited to methods where you want to inspect the sample before measurement. The cover plate is a removable component, not a pressure-rated seal, so liquid retention and support should be checked in the fixture you plan to use.
First-use check
- Inspect the sample region, optical faces and mating surfaces.
- Assemble the body and cover without force and confirm even support in the fixture.
- Check sample coverage and background repeatability before routine use.
Fit and optical alignment

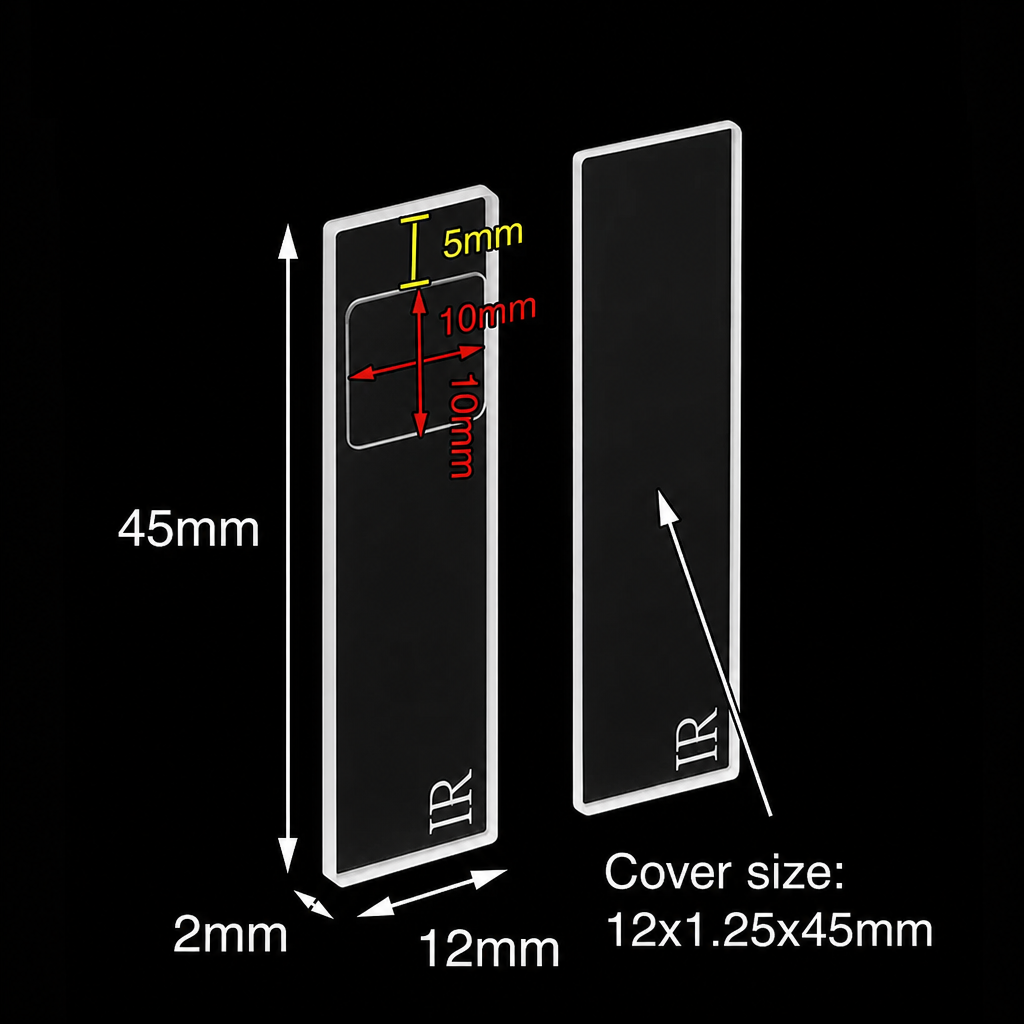

The body is 12 × 2 × 45 mm, and the separate cover plate is dimensioned independently. Check your holder or clamp for support across the assembled body-and-cover set rather than the cell body alone.
The marked optical window is 10 × 10 mm, with its upper edge 5 mm below the top of the body. Z Height is not listed, so beam-center fit should be checked against your fixture instead of assumed from the outer dimensions. The 10 µL figure is nominal capacity, not a universal working fill.
View the English selection reference. View the dimensions before selecting your holder.
Solvents and cleaning
This Standard 80 demountable cell uses an adhesive-bonded construction. It is suited to routine room-temperature aqueous samples and buffers. Keep organic samples and organic cleaning solvents away from the bonded assembly. If your method needs organic solvents or heating, ask about a more suitable construction.
Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis, abrasive cleaners and force on the thin components. Use non-abrasive optical tissue on external optical faces.
Included with this option

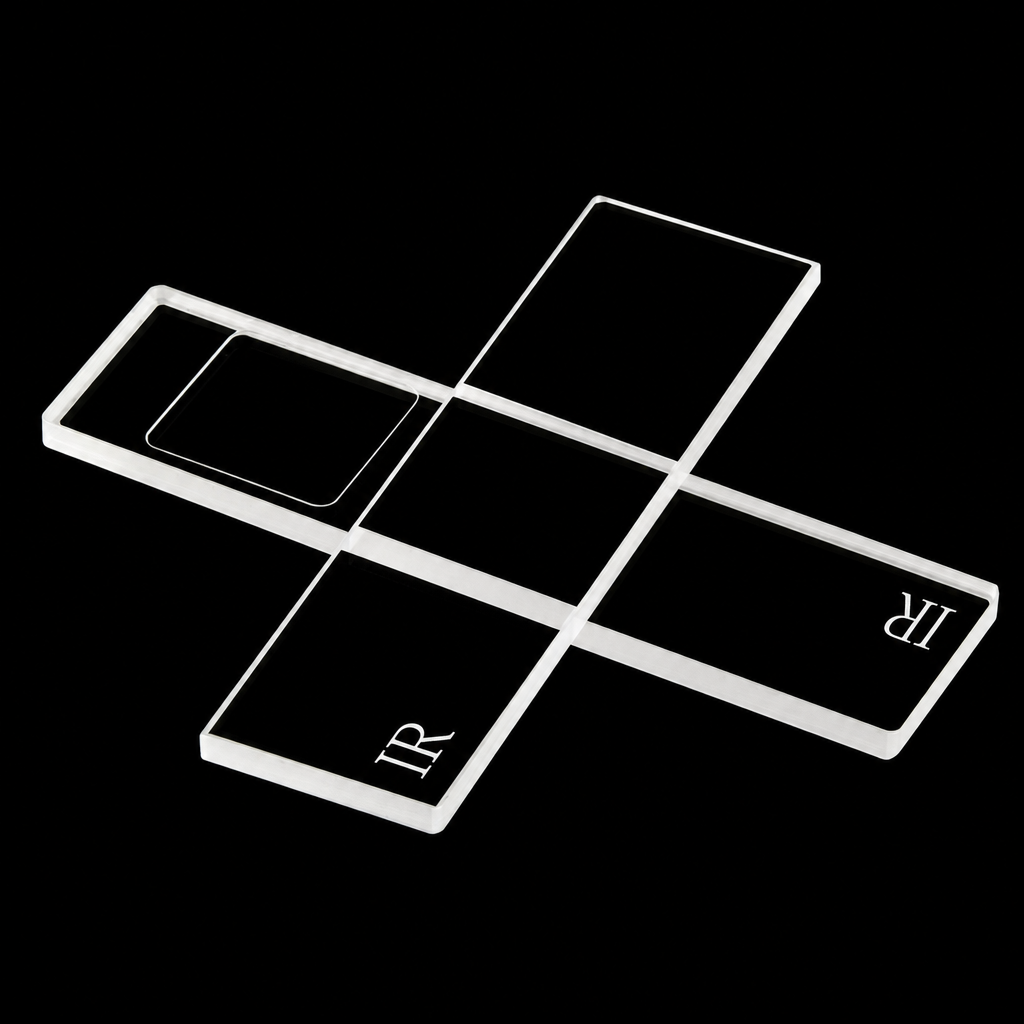

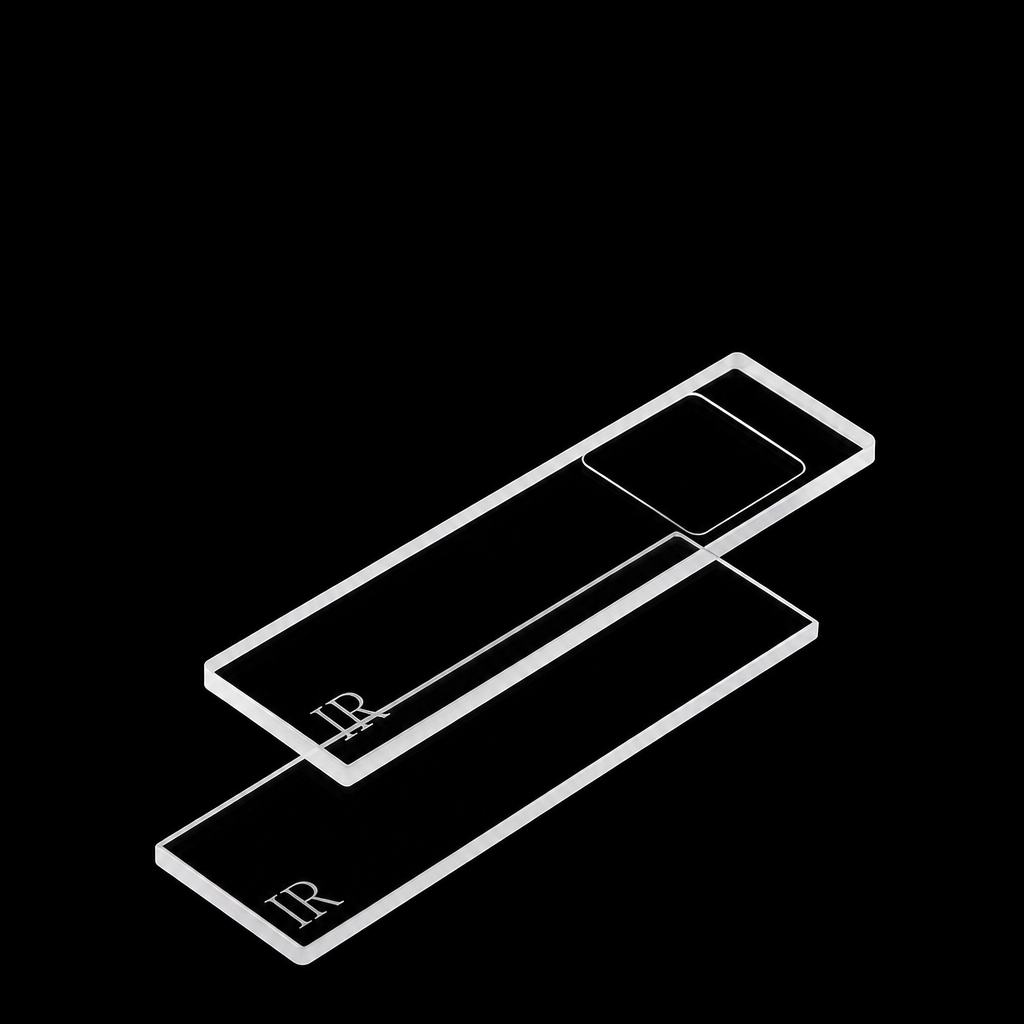

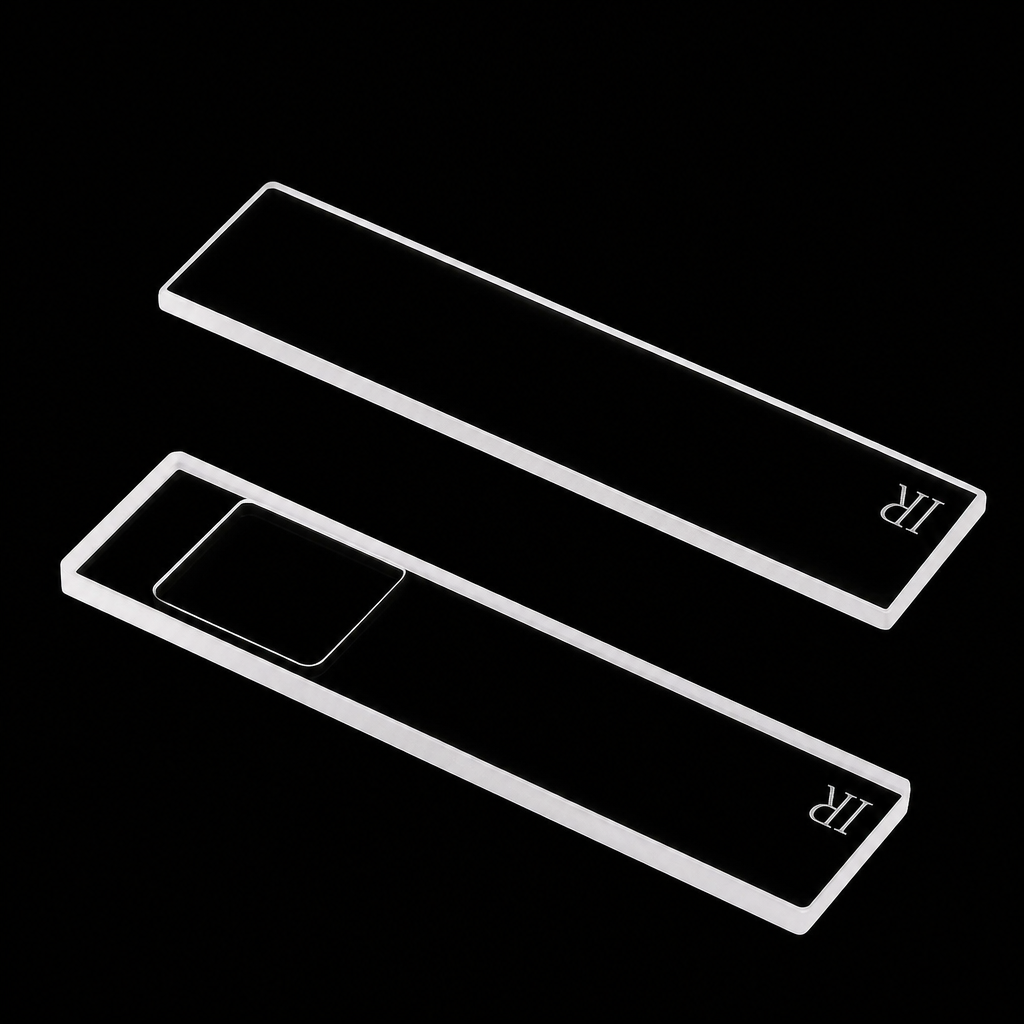

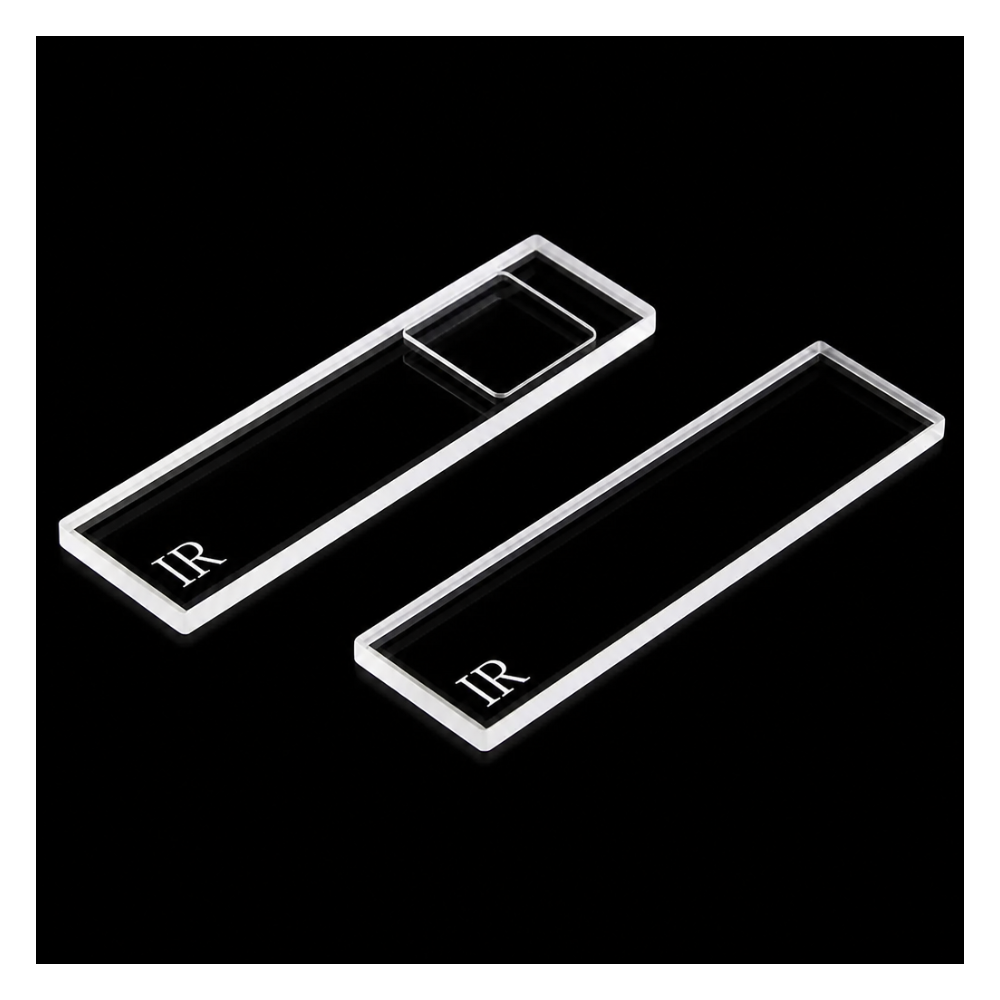

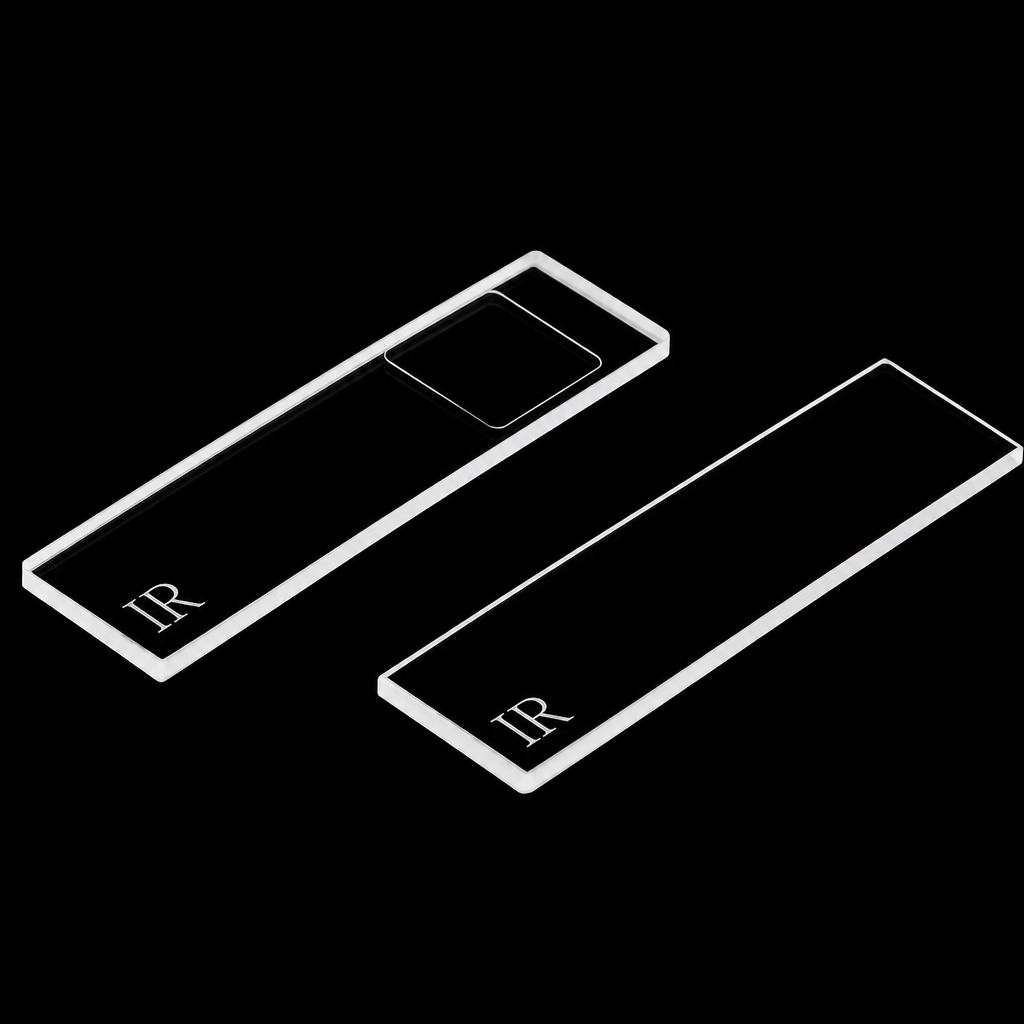

One MQQMC083 cell body with its accompanying quartz cover plate. The price is per body-and-cover set. Gallery views show the separate components; additional overlapping parts do not increase the supplied quantity.
Availability and ordering
Order the listed specification directly, or contact us first to check availability and dispatch timing. A temporarily unavailable option may need additional preparation or production time. If you have a required delivery date, please check with us before ordering; preparation and shipping transit are separate.
Discuss a custom version
For a modified version, send the sample form, required gap, sample region, support or clamping arrangement and illumination direction. Include sample and cleaning conditions, with body and cover dimensions identified separately.
Discuss your application and quote MQQMC083, quantity and delivery destination.
Design notes for this configuration: 0.1 mm Demountable Quartz Cell: Why Use Two Separate Plates?
Additional information
| Weight | 50 g |
|---|
